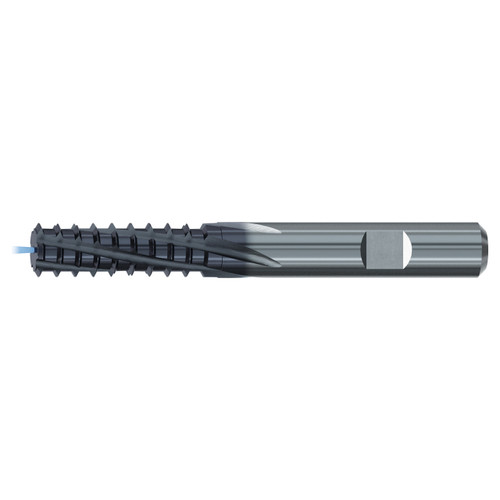

Emuge GFB4513C.0112 | 1.75mm Thread Pitch x 84.00mm OAL 5 Flute TIALN-86 Coated Thread Mill

Emuge GFB4513C.0112 | 1.75mm Thread Pitch x 84.00mm OAL 5 Flute TIALN-86 Coated Thread Mill

SKU: 17987175 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$695.34 $681.43
(You save $13.91)
Shipping: Free Shipping

About This Item

Features:

  • For economical production of internal threads in a wide range of materials
  • Alternating tooth rows reduce axial force
  • Longer tool life when compared to traditional flute designs
  • Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile

Product Specifications
Manufacturer Part NumberGFB4513C.0112
Cutting Diameter (mm)9.90mm
Thread Size≥M 12x1.75
Thread Diameter Size≥M 12
Thread StandardM
Thread Pitch (mm)1.75mm
Overall Length (mm)84.00mm
Flute Length (mm)30.60mm
Dimensional StandardsDIN 13
Shank Toleranceh6
Tool Cylindrical - Shank StyleWeldon Flat - HB
Shank StandardDIN 6535
Flute DirectionRight Hand
Group Length2.5xD
Coolant Supply PropertyInternal
Coolant FedAxial
Number of Flute5
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialCarbide
CoatingTIALN-86
Tool TypeVARIO - Skip Tooth
ApplicationThread Milling
Product TypeThread Mill
