Features:

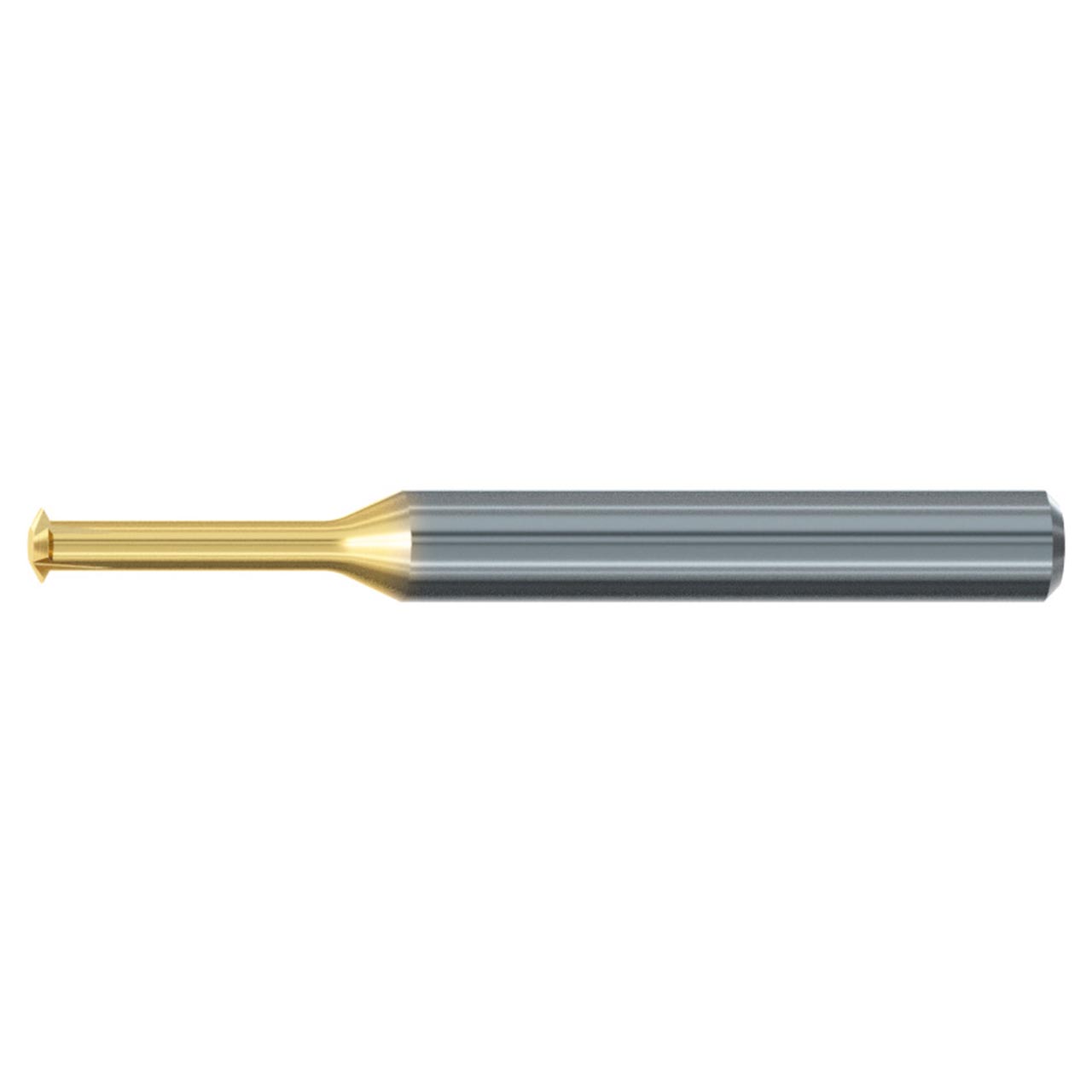

- Solid carbide circular thread mill for a wide range of materials
- Optimized cutting geometry that works well in a job shop enviroment with multiple materials
Product Specifications
| Cutter Diameter (mm) | .067" |
| Pitch | 56, 64 |
| Size | 2 |
| Thread Standard | UNC/UNF |
| Applicable Material | Universal |
| Application | Single Plane |
| Type | MULTI-THREAD MILL |
| Length Group | 3 x D |
| Coolant Fed | No |
| Coating/Finish | TIN-T21 |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 1/8" |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 1.625" |
| Flute Length (mm) | 0.258" |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.0670"
Shank Diameter (Inch):
1/8"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.2580"
Thread Size:
#2-56, 64
Threads per Inch (TPI):
56, 64
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiN-T21
Tool Type:
MULTI-THREAD MILL
Application:
Thread Milling
Overall Length (Decimal Inch):
1.6250"
interval quantity:
1
