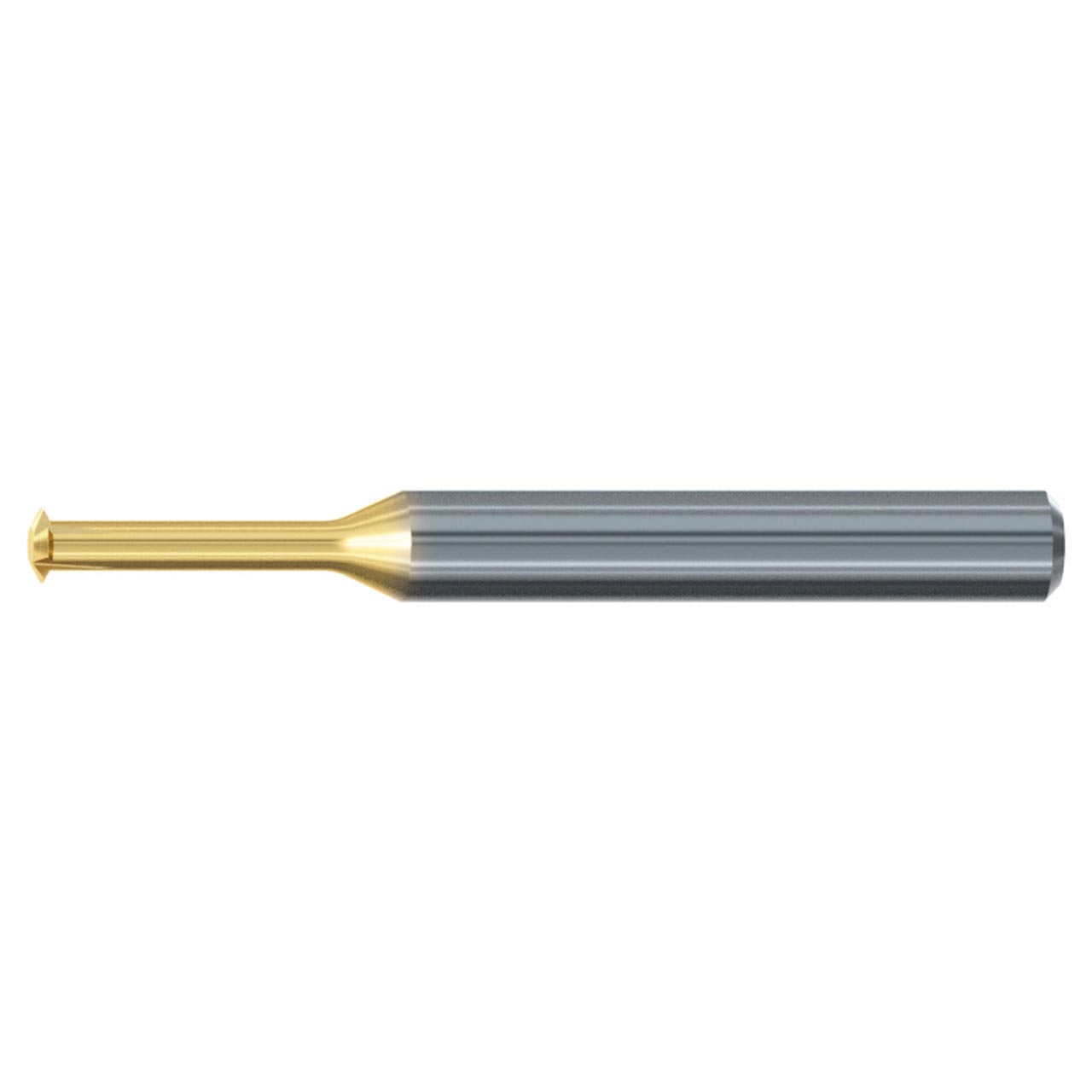

Emuge GFS83705.5005 | #6- (32 or 40) UNC/UNF -Thread Mill - MULTI Style -3xD

$164.65 $156.42
(You save $8.23)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1060"
Shank Diameter (Inch):
1/8"
Material:
Carbide
Number of Flutes:
3
interval quantity:
1
SKU:
15046453
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge GFS83705.5005 | #6- (32 or 40) UNC/UNF -Thread Mill - MULTI Style -3xD

Features:

  • Solid carbide circular thread mill for a wide range of materials
  • Optimized cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
Cutter Diameter (mm).106"
Pitch32, 40
Size6
Thread StandardUNC/UNF
Applicable MaterialUniversal
ApplicationSingle Plane
TypeMULTI-THREAD MILL
Length Group3 x D
Coolant FedNo
Coating/FinishTIN-T21
MaterialCarbide
Number of Flutes3
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)1/8"
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)1.625"
Flute Length (mm)0.414"
Flute DirectionRight Hand, Left Hand

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
