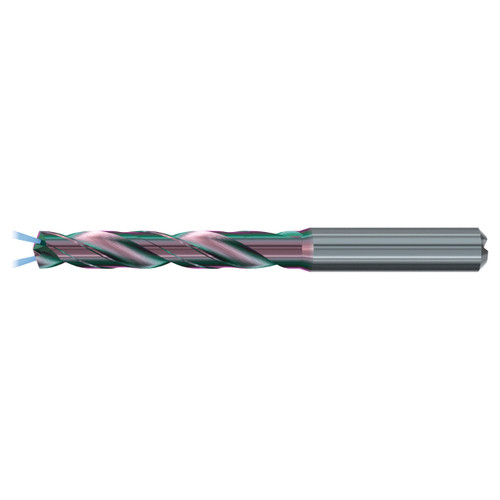

Emuge TA211544.0980 | 9.80mm Drill Size x 10.00mm Shank x 61.00mm Flute Length x 103.00mm OAL x 140 Degree Point Angle 2 Flute ALTIN-112 Coated Carbide Screw Machine Length Drill Bit

Emuge TA211544.0980 | 9.80mm Drill Size x 10.00mm Shank x 61.00mm Flute Length x 103.00mm OAL x 140 Degree Point Angle 2 Flute ALTIN-112 Coated Carbide Screw Machine Length Drill Bit

SKU: 10277963 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$379.86 $372.26
(You save $7.60)
Shipping: Free Shipping

About This Item

Features:

  • SteelDrill is designed for high penetration rate drilling in production applications
  • Self-centering point geometry that eliminates the need for spot drilling
  • Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling
  • Double margin flute design for rounder holes and improved surface finishes

Product Specifications
Manufacturer Part NumberTA211544.0980
Cutting Diameter (Decimal Inch)0.386"
Cutting Diameter (mm)9.80mm
Thread Size5xD
Overall Length (mm)103.00mm
Flute Length (mm)61.00mm
Shank Toleranceh6
Tool Cylindrical - Shank StyleHA
Shank StandardDIN 6535
Flute DirectionRight Hand
Group Length5xD
Coolant Supply PropertyInternal
Coolant FedYes
Number of Flute2
Point Angle (Degree)140 Degree
Flute Helix Angle (Degree)30 Degree
Cutting Edge MaterialCarbide
CoatingALTIN-112
Tool TypeSteelDrill
ApplicationHigh Penetration Rate Drill
Product TypeScrew Machine Length Drill Bit
