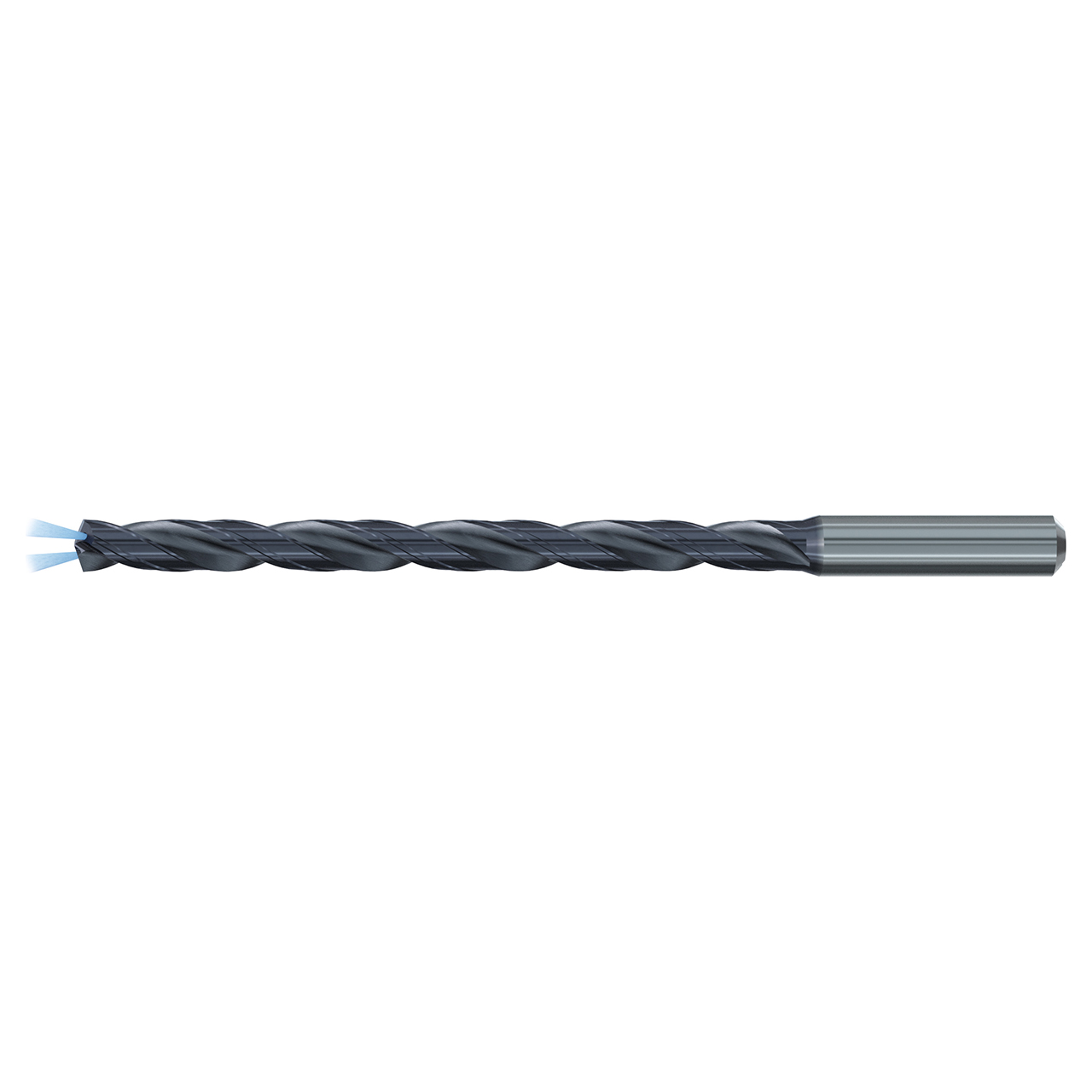

Features:
- High penetration rate carbide drill with double margin flute design Unique web construction Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Manufacturer Part Number | TA233344.0410 |
| Cutting Diameter (Decimal Inch) | 0.161" |
| Cutting Diameter (mm) | 4.10mm |
| Overall Length (mm) | 102.00mm |
| Flute Length (mm) | 64.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 12xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Yes |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | EF Drill |
| Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Finish/Coating:
TiAlN
Overall Length (Inch):
4-1/64"
Overall Length (Decimal Inch):
4.0157"
Overall Length (mm):
102.00mm
Flute Length (Inch):
2-33/64"
Flute Length (Decimal Inch):
2.5197"
Flute Length (mm):
64.00mm
Drill Point Angle:
140 Degree
interval quantity:
1
