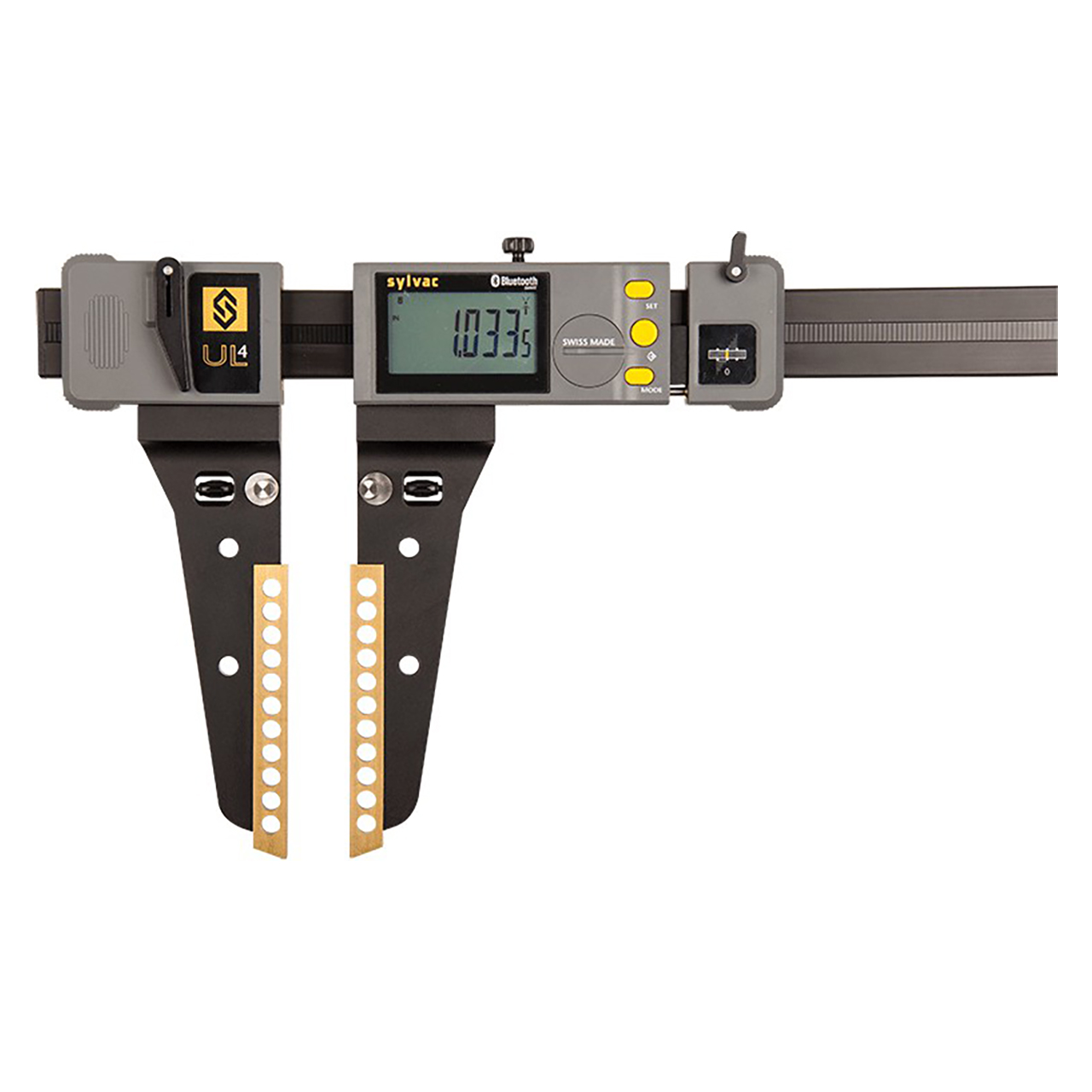

IP67 protected against fluid and dust. Reinforced frame. XXL display with 0.79"/20mm high digits. Lengthened jaws 7.9"/200mm. Includes upper ID measuring pins (5mm dia.). Internal and external measurement indicator. Movable left jaw. Stainless steel titanium coated jaws. Hold, preset, min/max, tolerance functions.
Product Specifications
| Range | 0-15"/0-400mm |
| Accuracy | 0.0012"/30μm |
| Repeatability | 0.0008"/20μm |
| Measuring Force | 5-10N |
| Connection | Bluetooth Smart/Prox.-RS232orUSB |
| Protection Rating | IP67(ElectronicModule) |
| Preset Maximum | ±9999.99mm/±399.9995IN |
| Weight | 3.3lbs./1.5kg. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fowler
Accuracy (Decimal Inch):
0.0012"
Accuracy (mm):
0.03mm"
IP Rating:
IP67
interval quantity:
1
