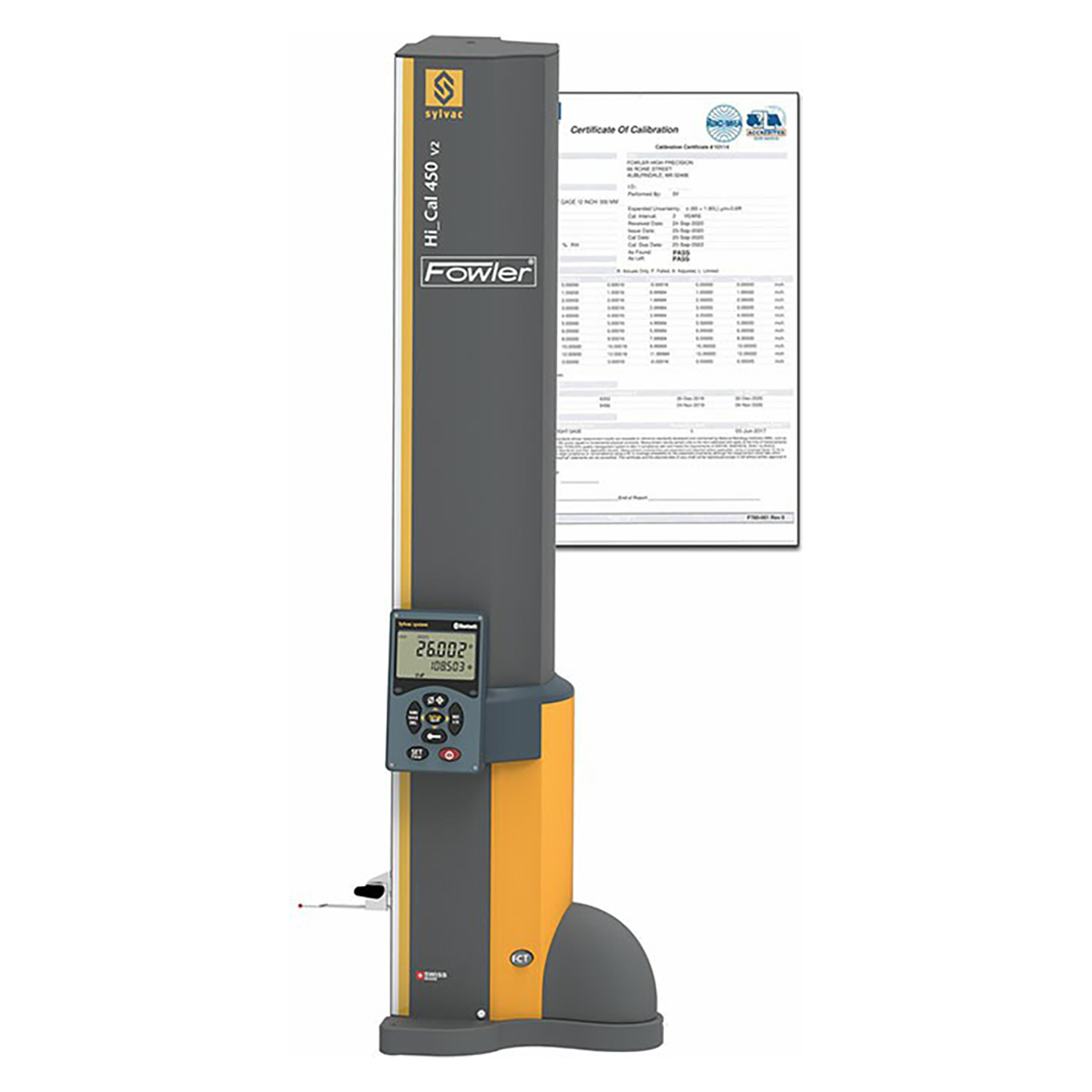

Quick, easy computer recorded measurements. Extra low measuring force, from 0.2N. Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability. Excellent repeatability thanks to the motorized carriage. High reliability. Bluetooth, USB and RS232 data outputs. Battery life: 40 hours rechargeable during operation. Touch sensitive probe speed for easy operation. Base with small footprint. Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificates
Product Specifications
| Range | 17.5"/450mm |
| Application Range | 18.5"/0-470mm |
| Maximum Error(μm) | 2.5+L/175 |
| Repeatability | 2μm |
| Resolution | 0.00005"/0.001mm |
| Velocity(mm/sec.) | 50/100 |
| Measuring Force | 0.2-0.3Newtons |
| Self-Contained Use | Approximately 40 hours |
| Overall Height | 26.7"/679mm |
| Weight | 15 lb/6.8kg |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fowler
