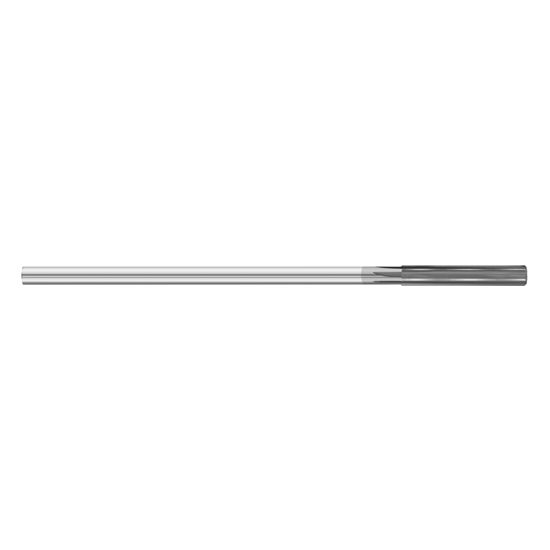

Fullerton Tool 14511 | 1/8" Diameter 7/8" Flute Reamer

$28.11
Brand:
Fullerton Tool
Reamer Diameter (Inch):
1/8"
Reamer Diameter (Decimal Inch):
0.1250"
Reamer Diameter (mm):
3.18mm
Flute Length (Inch):
7/8"
Flute Length (Decimal Inch):
0.8750"
Flute Length (mm):
22.23mm
Flute Type:
Straight
Ships:
From Partner Facility
SKU:
10002234
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Ships:
From Partner Facility

Features

  • The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
  • Its known for its tight tolerances and exceptional performance
  • The 1400 Carbide Reamer is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.1250"
Cutting Diameter (mm) 3.18mm
Cutting Diameter (Inch) 1/8"
Cutting Flute Length (Decimal Inch) 0.8750"
Cutting Flute Length (mm) 22.23mm
Cutting Flute Length (Inch) 7/8"
Shank Diameter (Decimal Inch) 0.1094"
Shank Diameter (mm) 2.78mm
Shank Diameter (Inch) 7/64"
Overall Length (Decimal Inch) 3.5000"
Overall Length (mm) 88.90mm
Overall Length (Inch) 3-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Flute Spiral Direction Straight
Direction of Cut Right Hand
Point End Type 45° Cutting Chamfer
End Type Character Designation C
Chamfer Angle (Degrees) 45
Center Type Female
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
