Features

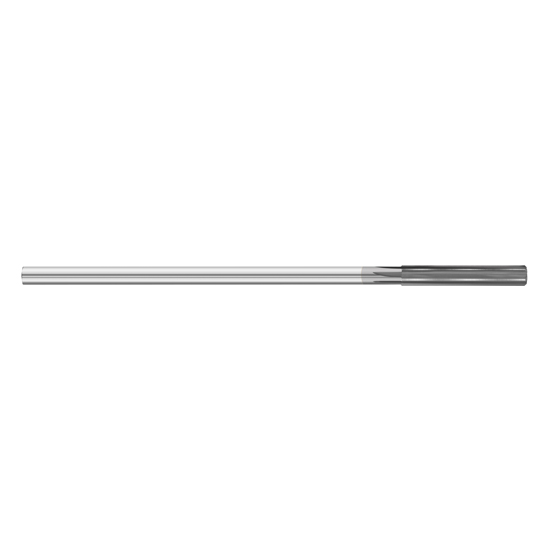

- The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
- Its known for its tight tolerances and exceptional performance
- The 1400 Carbide Reamer is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8750" |
| Cutting Diameter (mm) | 22.23mm |
| Cutting Diameter (Inch) | 7/8" |
| Cutting Flute Length (Decimal Inch) | 2" |
| Cutting Flute Length (mm) | 50.80mm |
| Cutting Flute Length (Inch) | 2" |
| Shank Diameter (Decimal Inch) | 0.8438" |
| Shank Diameter (mm) | 21.43mm |
| Shank Diameter (Inch) | 27/32" |
| Overall Length (Decimal Inch) | 10.0000" |
| Overall Length (mm) | 254.00mm |
| Overall Length (Inch) | 10" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 8 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | 45 DegreeCutting Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 45 |
| Center Type | Female |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Reamer Diameter (Inch):
7/8"
Reamer Diameter (Decimal Inch):
0.8750"
Reamer Diameter (mm):
22.23mm
Flute Length (Inch):
2"
Flute Length (Decimal Inch):
2"
Flute Length (mm):
50.80mm
Flute Type:
Straight
Ships:
From Partner Facility
IsDiscontinued:
