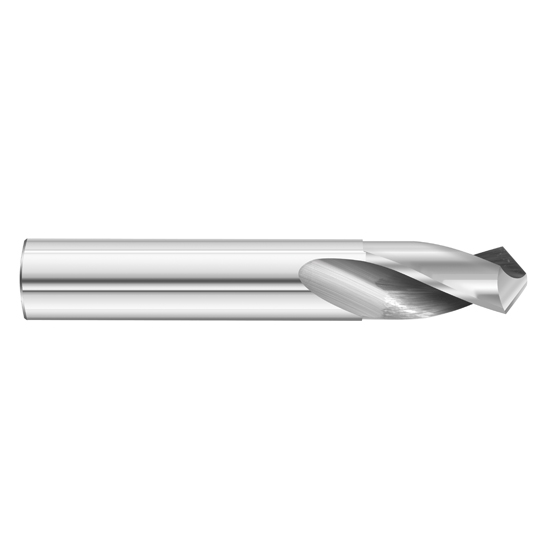

Fullerton Tool 16080 | Letter J Solid Carbide Uncoated Screw Machine Length Drill

$63.27 $62.00
(You save $1.27)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Point Angle:
118 Degree
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
Coolant Through:
No
interval quantity:
1
Ships:
From Partner Facility
SKU:
10001880
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 16080 | Letter J Solid Carbide Uncoated Screw Machine Length Drill

Features

  • The 1510 4-Facet Point is a 2-flute, general purpose drill designed for use in titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, high si aluminum, low si aluminum, composites, and wood
  • This drill is the preferred design for screw machine and Swiss lathe applications
  • The 1510 4-Facet Point is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2770"
Cutting Diameter (mm) 7.04mm
Diameter (Letter) J
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.2770"
Shank Diameter (mm) 7.04mm
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Four Facet
End Type Character Designation FF
Point Include Angle 118
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator 3xD
