Features

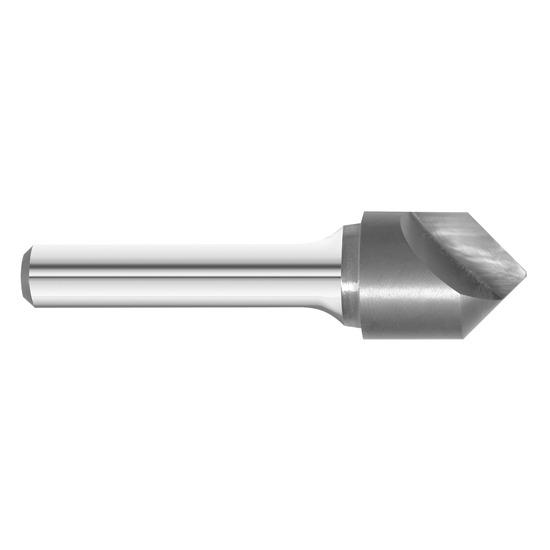

- The 1847 1FL Countersink has a single, 90 Degree flute designed for use in mild steels and other non-ferrous materials
- The 1847 1FL Countersink is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.7500" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Overall Length (Inch) | 3" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Countersink Angle (Degrees) | 90 |
| Number of Flutes | 1 |
| Helix Angle (Degrees) | 15 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Head Diameter (Inch):
3/4"
Head Diameter (Decimal Inch):
0.7500"
Head Diameter (mm):
19.05mm
Number of Flutes:
1
Included Angle:
90°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
