Features

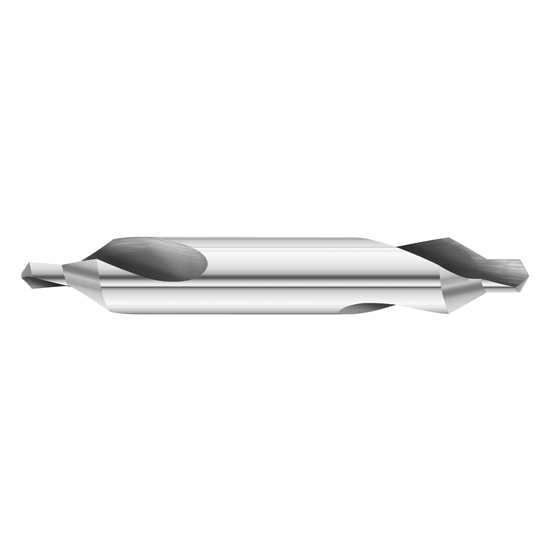

- The 2305 Center Drill is a 2-flute, general purpose drill designed to be a combination drill and countersink, centering and chamfering in one single operation
- It can be used in a variety of materials including titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, aluminum, composites, and wood
- The 2305 Center Drill is available in 60 Degree, 82 Degree, and 90 Degree angle points and is stocked uncoated and with TAILN coating
Product Specifications
| Pilot Diameter (Decimal Inch) | 0.0781" |
| Pilot Diameter (mm) | 1.98mm |
| Pilot Diameter (Inch) | 5/64" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Overall Length (Inch) | 2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Countersink Angle (Degrees) | 90 |
| Tool Number | 2 |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 25 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Cam Relieved |
| End Type Character Designation | CAM |
| Point Include Angle | 118 |
| End Type | Double End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Trade Size:
2
Included Angle:
118°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Body Diameter (Inch):
3/16"
Body Diameter (Decimal Inch):
0.1875"
Body Diameter (mm):
4.76mm
Drill Point Diameter (Inch):
5/64"
Drill Point Diameter (Decimal Inch):
0.0781"
Drill Point Diameter (mm):
1.98mm
End Type:
Double End
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Cutting Direction:
Right Hand
Ships:
From Partner Facility
