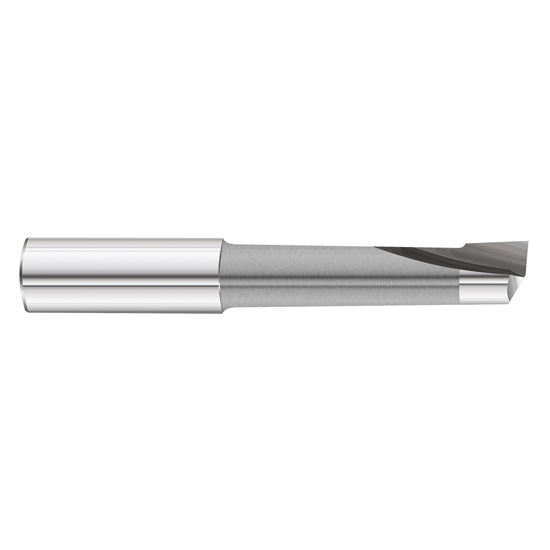

Fullerton Tool 24000 | 0.090" Boring Tool

About This Item

Features

• The 2400 Boring Tool has a single, straight flute with tapered clearance neck improving rigidity with less deflection
• The 2400 Boring Tool is stocked uncoated

Product Specifications

Cutting Diameter (Decimal Inch)	0.0900"
Cutting Diameter (mm)	2.29mm
Shank Diameter (Decimal Inch)	0.1250"
Shank Diameter (mm)	3.18mm
Shank Diameter (Inch)	1/8"
Overall Length (Decimal Inch)	1.5000"
Overall Length (mm)	38.10mm
Overall Length (Inch)	1-1/2"
Coating/Finish	Uncoated
Metric/Inch	Inch
Minimum Hole Diameter (Decimal Inch)	0.0900"
Maximum Depth of Hole (Decimal Inch)	0.5000"
Maximum Depth of Hole (mm)	12.70mm
Maximum Depth of Hole (Inch)	1/2"
Tool Number	F-0
Number of Flutes	1
Flute Spiral Direction	Straight
Direction of Cut	Right Hand
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Minimum Hole Diameter (mm)	2.286mm
