Features

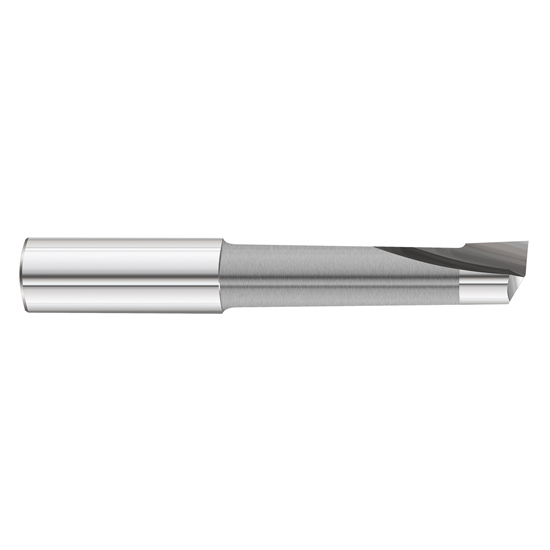

- The 2400 Boring Tool has a single, straight flute with tapered clearance neck improving rigidity with less deflection
- The 2400 Boring Tool is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.2700" |
| Cutting Diameter (mm) | 6.86mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Overall Length (Inch) | 2-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Minimum Hole Diameter (Decimal Inch) | 0.2700" |
| Maximum Depth of Hole (Decimal Inch) | 1.2500" |
| Maximum Depth of Hole (mm) | 31.75mm |
| Maximum Depth of Hole (Inch) | 1-1/4" |
| Tool Number | F-6 |
| Number of Flutes | 1 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Minimum Hole Diameter (mm) | 6.858mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Minimum Bore Diameter (Decimal Inch):
0.2700"
Minimum Bore Diameter (mm):
6.858mm
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Maximum Bore Depth (mm):
31.75mm
Model:
F-6
