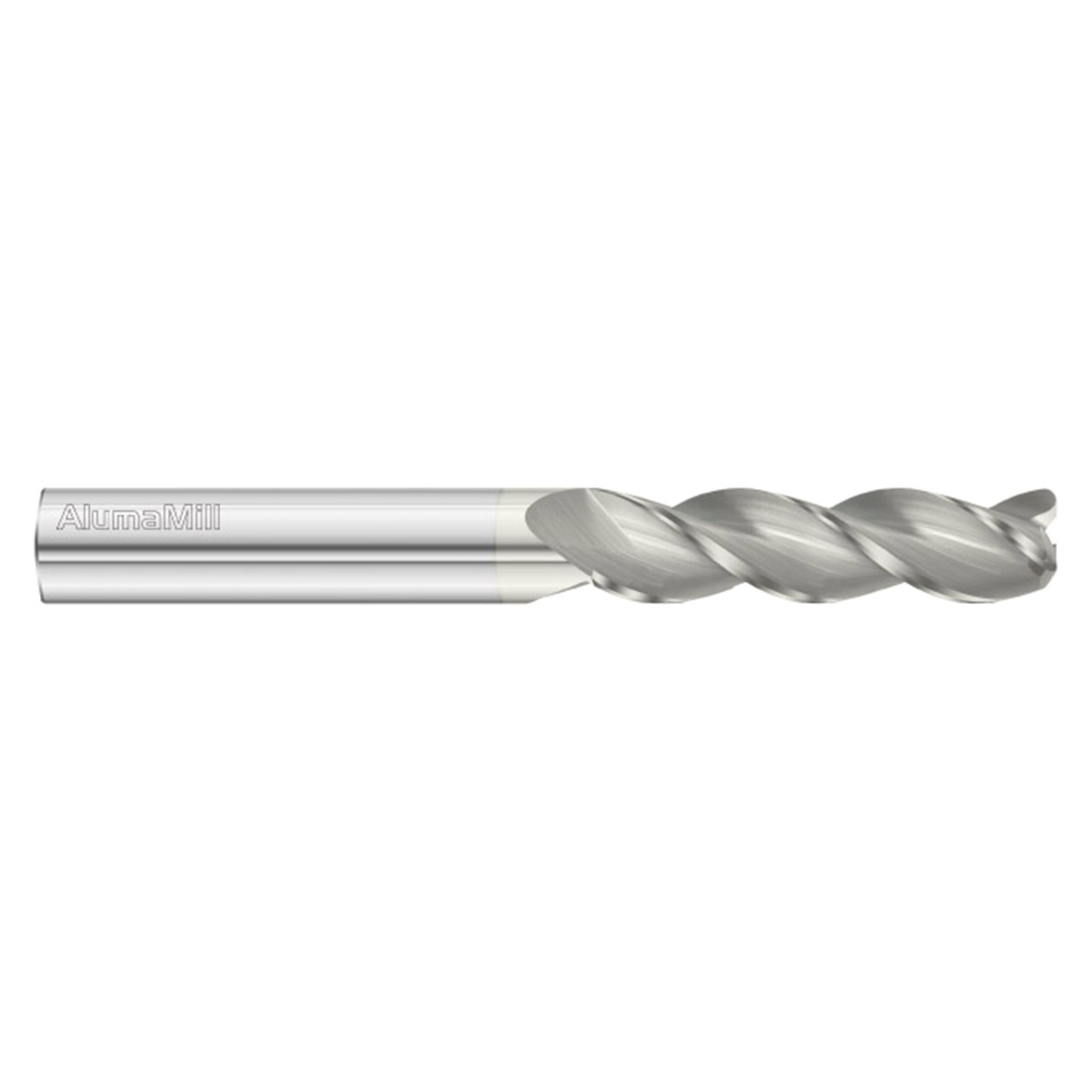

Youre going to want to get your hands on The 3833 AlumaMill G3 end mill! It annihilates competitors tools when roughing and finishing aluminum and other non-ferrous materials. Its flute shape and relief form generate superior wall finishes, while its unique wiper geometry produces excellent floor finishes. The 3833 AlumaMill G3 is a high-performance end mill with 3-flutes and is stocked uncoated and with FC-5 coating, which helps reduce edge build-up.
| Manufacturer Part Number | 27316 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Cutting Flute Length (Inch) | 1-1/4" |
| Cutting Flute Length (Decimal Inch) | 1.250" |
| Cutting Flute Length (mm) | 31.75mm |
| Radius (Decimal Inch) | 0.030" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 37.50 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC5 |
| Series | 3833 |
| Product Type | Corner Radius End Mill |
