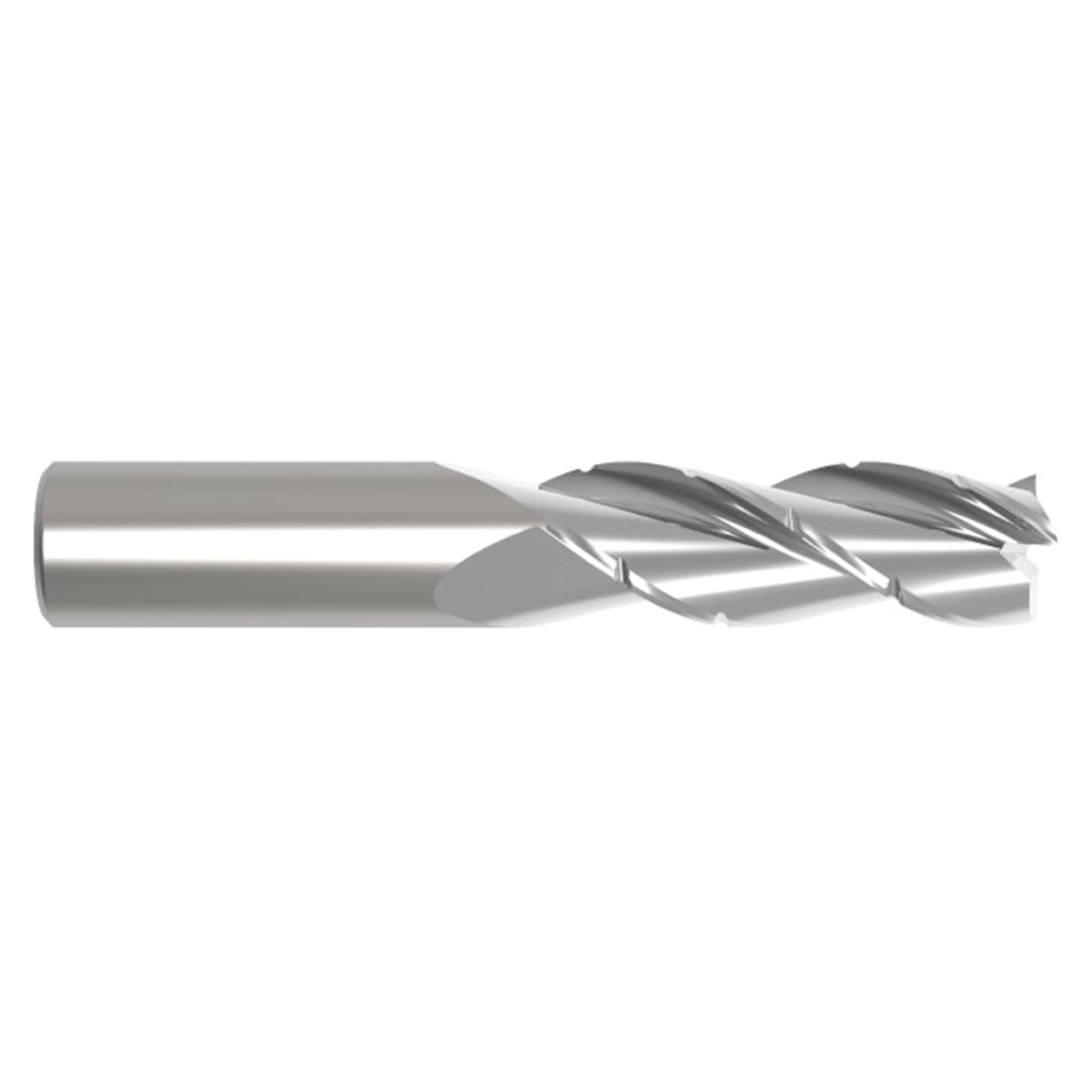

The 3805 AlumaMill G3 Vicor end mill was specially designed to crush it in aggressive roughing, finishing, plunging, and ramping in aluminum and brass & copper. It was designed for fast material removal and multi-purpose machining, while the chip breakers provide chip control. Its flute shape and relief form generate superior wall finishes, while its unique wiper geometry produces excellent floor finishes. The 3805 AlumaMill G3 Vicor is a high-performance end mill with 3-flutes and stocked with FC-5 coating, which helps reduce edge build-up. Check out The AlumaMill G3 Vicor today!
| Manufacturer Part Number | 38694 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Cutting Flute Length (Inch) | 2-1/2" |
| Cutting Flute Length (Decimal Inch) | 2.500 |
| Cutting Flute Length (mm) | 63.50mm |
| Radius (Decimal Inch) | 0.030" |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 37.50 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC5 |
| Series | 3805 |
| Product Type | Corner Radius End Mill |
