It's designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum, it offers a variety of configurations, and is available with single-end and double-end designs. The 3200 4-Flute General Purpose end mill has 4-flutes and is stocked uncoated and with TiN coatings.
Product Specifications
| Manufacturer Part Number | 30503 |
| Cutting Diameter (Inch) | 15/64" |
| Cutting Diameter (Decimal Inch) | 0.234" |
| Cutting Diameter (mm) | 5.95mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Cutting Flute Length (Inch) | 3/4" |
| Cutting Flute Length (Decimal Inch) | 0.750" |
| Cutting Flute Length (mm) | 19.05mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Ball |
| Coating | TiN |
| Series | 3200 |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Fullerton Tool

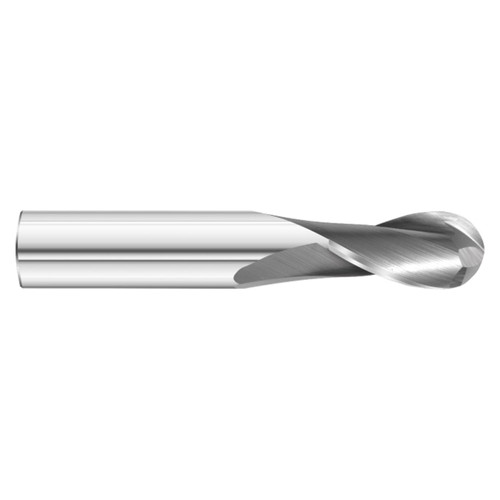

Fullerton Tool 32659 | 15/64" Diameter x 1/4" Shank x 2-1/2" OAL 2 Flute Ball End Mill
