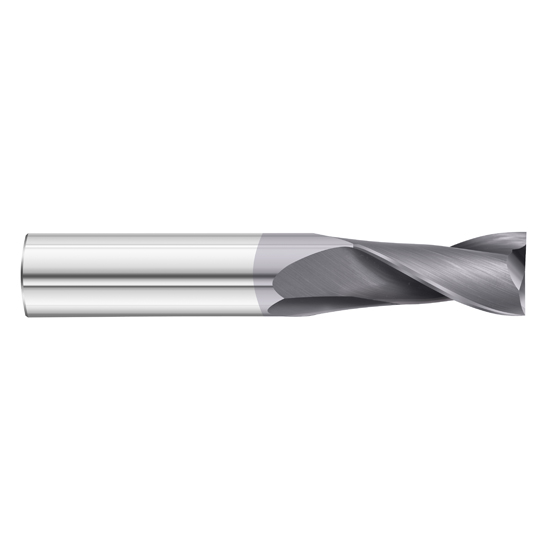

Fullerton Tool 30651 | 5/32" Diameter x 3/16" Shank x 9/16" LOC x 2" OAL 2 Flute TiAlN Solid Carbide Square End Mill

$27.03 $17.03
(You save $10.00)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/32"
Number of Flutes:
2
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003512
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 30651 | 5/32" Diameter x 3/16" Shank x 9/16" LOC x 2" OAL 2 Flute TiAlN Solid Carbide Square End Mill

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1562"
Cutting Diameter (mm) 3.97mm
Cutting Diameter (Inch) 5/32"
Cutting Flute Length (Decimal Inch) 0.5625"
Cutting Flute Length (mm) 14.29mm
Cutting Flute Length (Inch) 9/16"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
