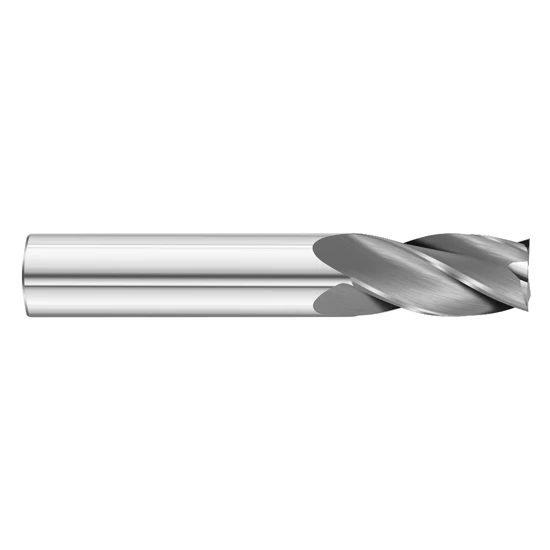

Fullerton Tool 32006 | 3/32" Diameter x 1/8" Shank x 3/8" LOC x 1-1/2" OAL 4 Flute Uncoated Solid Carbide Square End Mill

$16.35 $10.30
(You save $6.05)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/32"
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Shank Diameter (inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003104
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 32006 | 3/32" Diameter x 1/8" Shank x 3/8" LOC x 1-1/2" OAL 4 Flute Uncoated Solid Carbide Square End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.0938"
Cutting Diameter (mm) 2.38mm
Cutting Diameter (Inch) 3/32"
Cutting Flute Length (Decimal Inch) 0.3750"
Cutting Flute Length (mm) 9.53mm
Cutting Flute Length (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
