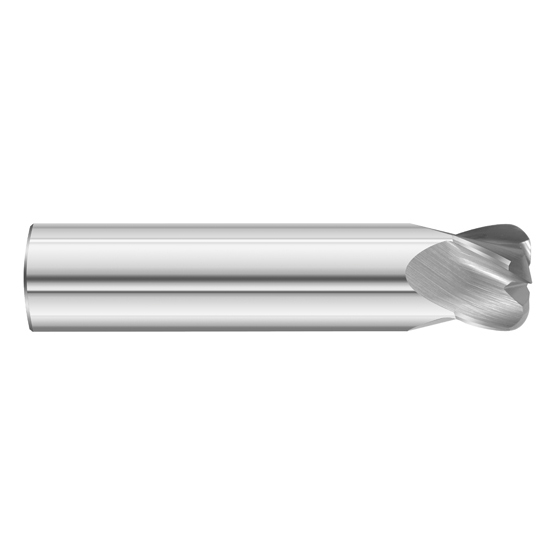

Fullerton Tool 32451 | 1/2" Diameter x 1/2" Shank x 5/8" LOC x 3" OAL 4 Flute Uncoated Solid Carbide Square End Mill

$88.97 $56.05
(You save $32.92)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Double
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25002990
UPC:
Weight:
0.35 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 32451 | 1/2" Diameter x 1/2" Shank x 5/8" LOC x 3" OAL 4 Flute Uncoated Solid Carbide Square End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 0.6250"
Cutting Flute Length (mm) 15.88mm
Cutting Flute Length (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Double End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
