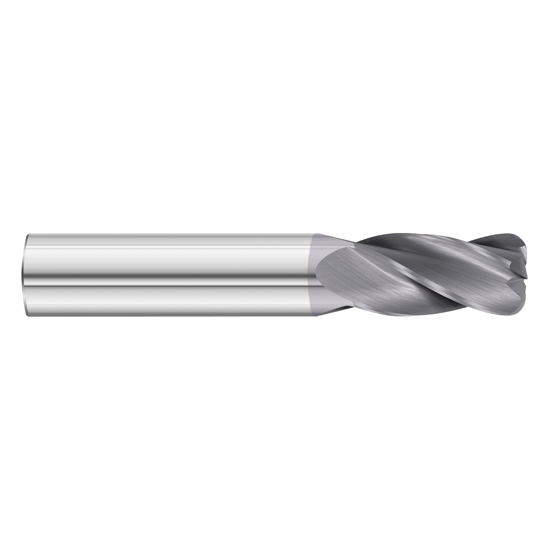

Fullerton Tool 33841 | 1/2" Diameter x 1/2" Shank x 1" LOC x 3" OAL 4 Flute TiAlN Solid Carbide Radius End Mill

$100.01 $63.01
(You save $37.00)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001703
UPC:
Weight:
0.35 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 33841 | 1/2" Diameter x 1/2" Shank x 1" LOC x 3" OAL 4 Flute TiAlN Solid Carbide Radius End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.1250"
Radius (mm) 3.18mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
