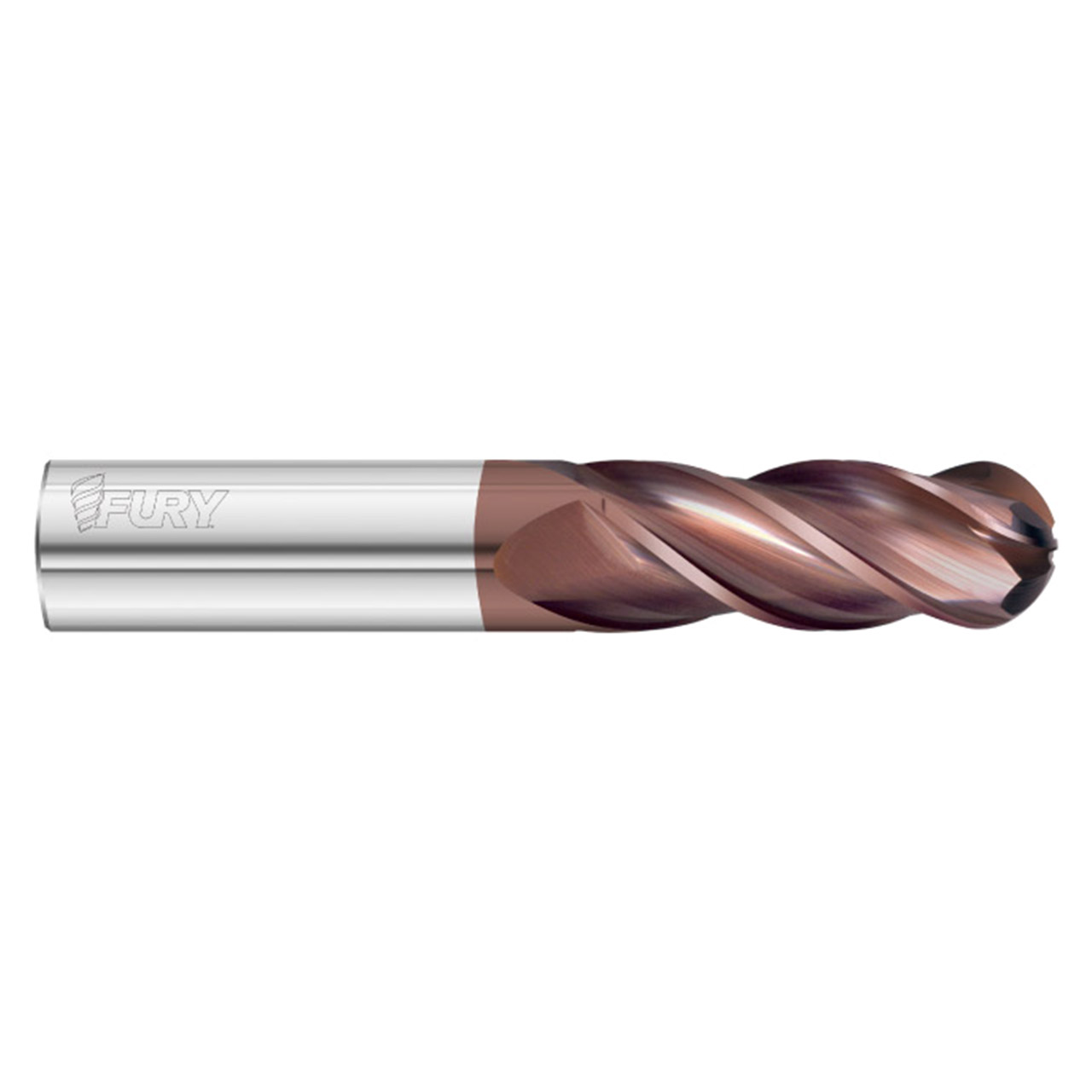

Fullerton Tool 35023 | 5/16" Diameter x 5/16" Shank x 2-1/2" OAL 4 Flute FC20 Coated Ball End Mill

$52.18 $51.14
(You save $1.04)
Brand:
Fullerton Tool
Mill Diameter (Decimal Inch):
0.3130"
Mill Diameter (Inch):
5/16"
Mill Diameter (mm):
7.94mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3130"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Number of Flutes:
4
Cutting Direction:
Right Hand
Finish/Coating:
FC20
interval quantity:
1
SKU:
23006991
UPC:
Weight:
1.77 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 35023 | 5/16" Diameter x 5/16" Shank x 2-1/2" OAL 4 Flute FC20 Coated Ball End Mill

Machinists are in a hurry to get their hands on The fan-favorite 3500 Fury end mill. It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes. The Fury’s tool versatility results in increased productivity, fewer tool changes, and longer tool life. It also has a protected corner that helps prevent premature breakdown of a corner radius and a special drill edge that provides a stronger flute and aids in chip evacuation. It was designed to excel in stainless steels, steels, super alloys, and titanium. The 3500 Fury is a high-performance end mill with 4-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.


Product Specifications
Manufacturer Part Number35023
Cutting Diameter (Inch)5/16"
Cutting Diameter (Decimal Inch)0.313"
Cutting Diameter (mm)7.94mm
Shank Diameter (Inch)5/16"
Shank Diameter (Decimal Inch)0.313"
Shank Diameter (mm)7.94mm
Cutting Flute Length (Inch)3/4"
Cutting Flute Length (Decimal Inch)0.750"
Cutting Flute Length (mm)19.05mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.500"
Overall Length (mm)63.50mm
Number of Flutes4
LengthStandard
Flute SpiralRight Hand
Cutting DirectionRight Hand
End TypeBall
CoatingFC20
Series3500
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
