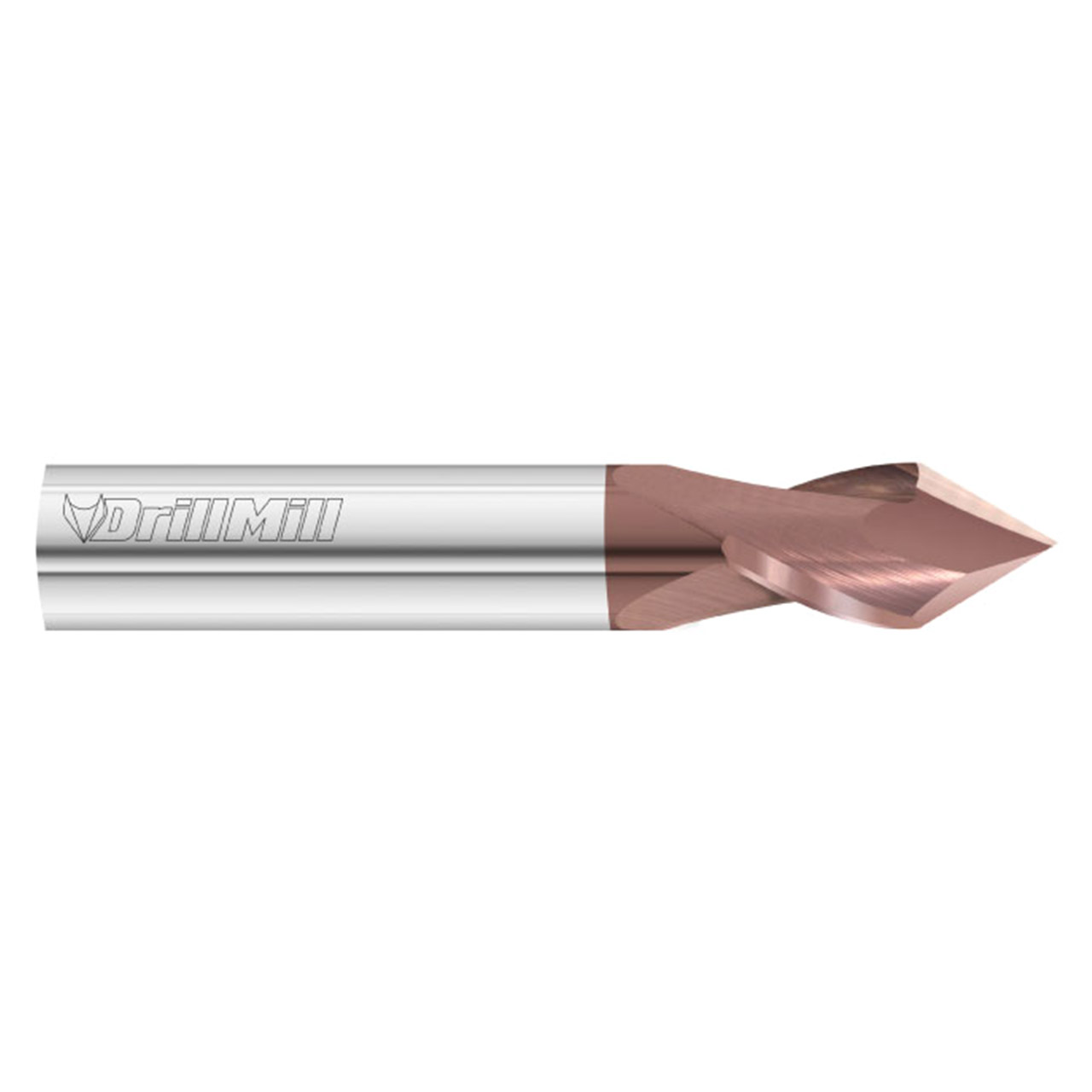

The 1215 Drill Mill has 2-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction. Get started with The Drill Mill today!
| Manufacturer Part Number | 12606 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Cutting Flute Length (Inch) | 13/16" |
| Cutting Flute Length (Decimal Inch) | 0.813" |
| Cutting Flute Length (mm) | 20.64mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30.00 Degree |
| Point Include Angle (Degree) | 90.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Four Facet |
| Coating | FC20 |
| Series | 1215 |
| Product Type | Drill Mill |
