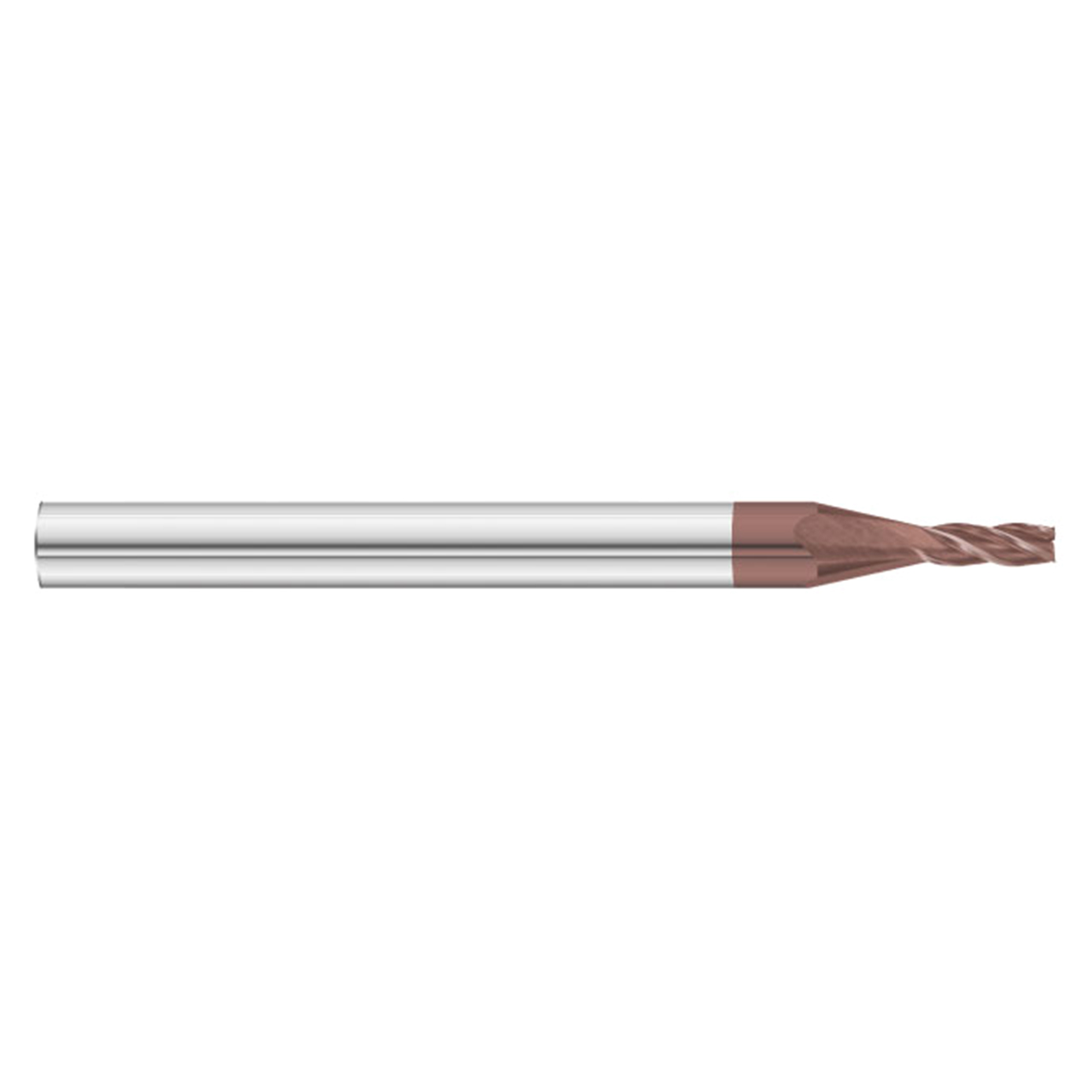

Fullerton Tool 35912 | 1/16" Diameter x 1/8" Shank x 1-1/2" OAL 4 Flute FC20 Coated Square End Mill

$19.16 $18.78
(You save $0.38)
Brand:
Fullerton Tool
Mill Diameter (Decimal Inch):
0.0630"
Mill Diameter (Inch):
1/16"
Mill Diameter (mm):
1.59mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Number of Flutes:
4
Cutting Direction:
Right Hand
Finish/Coating:
FC20
interval quantity:
1
SKU:
25235175
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 35912 | 1/16" Diameter x 1/8" Shank x 1-1/2" OAL 4 Flute FC20 Coated Square End Mill

Good things come in small packages and that is especially true when it comes to The 3500SM Micro Fury end mill. This micro end mill is the subminiature version of The highly popular Fury end mill and performs exceptionally in high-speed machining and full diameter milling, as well as produces excellent surface finishes. It also has a protected corner that helps prevent premature breakdown of a corner radius and a special drill edge that provides a stronger flute and aids in chip evacuation. It was designed to excel in stainless steels, steels, super alloys, and titanium. The 3500SM Micro Fury is a high-performance subminiature end mill and has 4-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction. Check out The Micro Fury today!


Product Specifications
Manufacturer Part Number35912
Cutting Diameter (Inch)1/16"
Cutting Diameter (Decimal Inch)0.063"
Cutting Diameter (mm)1.59mm
Shank Diameter (Inch)1/8"
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (mm)3.18mm
Cutting Flute Length (Inch)3/16"
Cutting Flute Length (Decimal Inch)0.188"
Cutting Flute Length (mm)4.76mm
Overall Length (Inch)1-1/2"
Overall Length (Decimal Inch)1.500"
Overall Length (mm)38.10mm
Number of Flutes4
LengthStandard
Flute SpiralRight Hand
Cutting DirectionRight Hand
End TypeSquare
CoatingFC20
Series3500SM
Product TypeSquare End Mill
