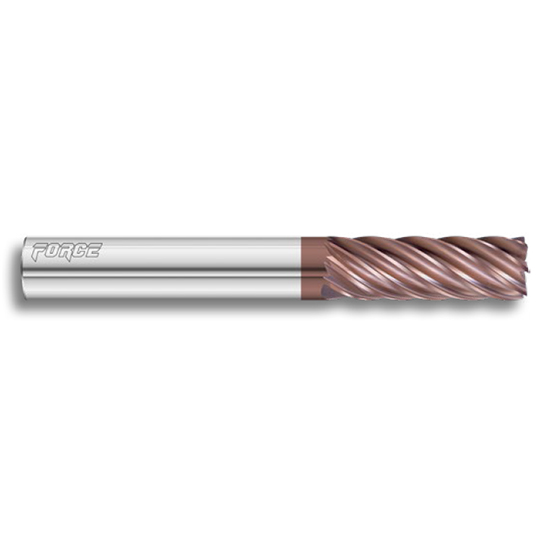

Fullerton Tool 36207 | 12mm Diameter x 12mm Shank x 36mm LOC x 100mm OAL 7 Flute FC20 Solid Carbide Radius End Mill

$159.81 $100.68
(You save $59.13)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
12.00mm
Number of Flutes:
7
Length of Cut (Decimal Inch):
1.4173"
Length of Cut (mm):
36mm
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Series:
3600 Force
Ships:
From Partner Facility
SKU:
25002512
UPC:
Weight:
0.50 LBS
Shipping:
Free Shipping

Features

  • The 3600 Force is a high performance end mill available with 5, 7, or 9-flutes
  • It produces excellent surface finishes and chip control and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium
  • The 3600 Force is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.4724"
Cutting Diameter (mm) 12.00mm
Cutting Flute Length (Decimal Inch) 1.4173"
Cutting Flute Length (mm) 36.00mm
Shank Diameter (Decimal Inch) 0.4724"
Shank Diameter (mm) 12.00mm
Overall Length (Decimal Inch) 3.9370"
Overall Length (mm) 100.00mm
Coating/Finish FC20
Metric/Inch Metric
Number of Flutes 7
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0394"
Radius (mm) 1.00mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
