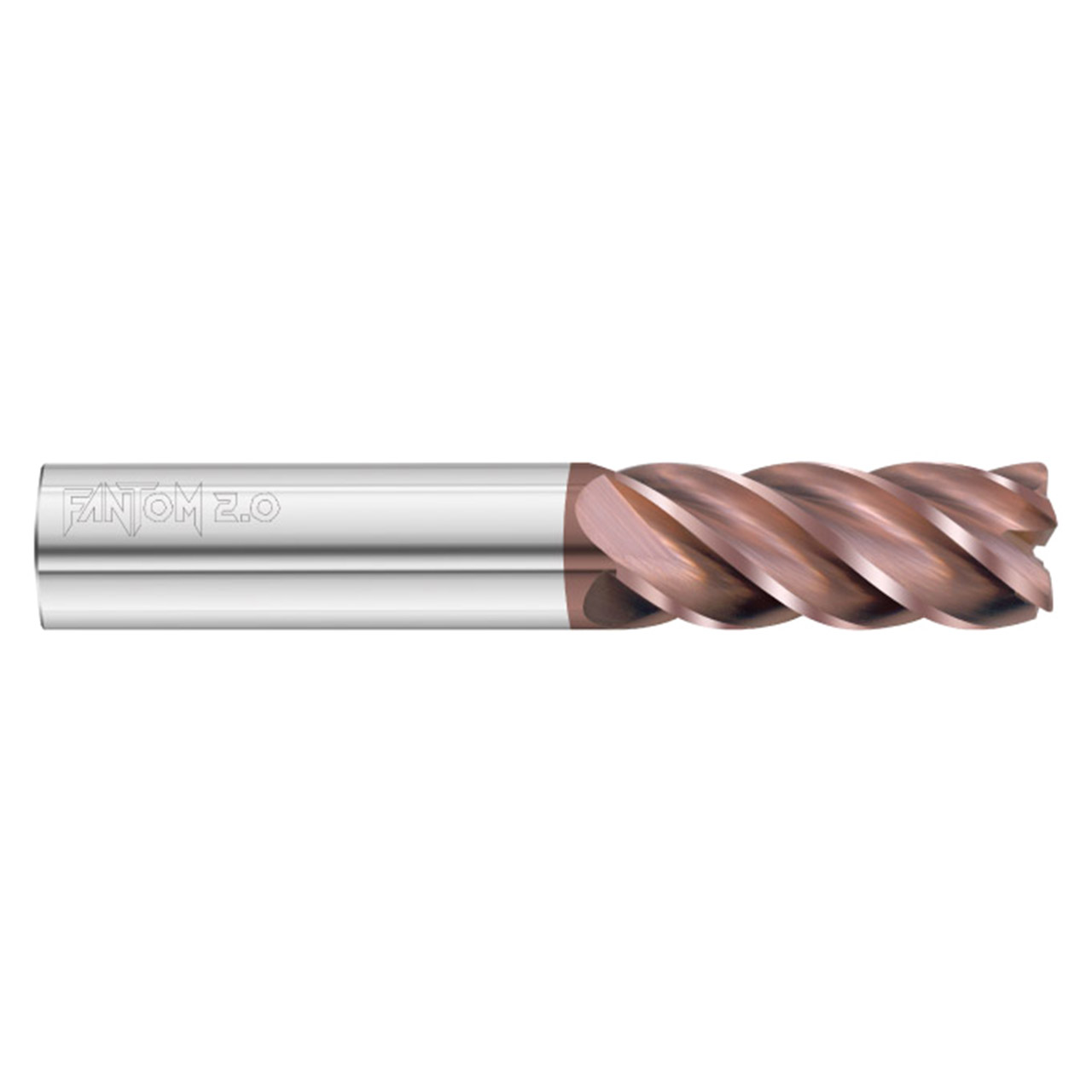

The 3412 Fantom 2.0 end mill is the latest and greatest when it comes to machining in difficult-to-machine materials like hardened steels, super alloys, stainless steels, and steels. Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads, and its enhanced edge strength increases productivity and lowers costs per part. The 3412 Fantom 2.0 is a high-performance end mill with 5-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.
| Manufacturer Part Number | 37522 |
| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Shank Diameter (Decimal Inch) | 0.197" |
| Shank Diameter (mm) | 5.00mm |
| Cutting Flute Length (Decimal Inch) | 0.630" |
| Cutting Flute Length (mm) | 16.00mm |
| Radius (Decimal Inch) | 0.020" |
| Overall Length (Decimal Inch) | 2.520" |
| Overall Length (mm) | 64.00mm |
| Number of Flutes | 5 |
| Helix Angle (Degree) | 40.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC20 |
| Series | 3412 |
| Product Type | Corner Radius End Mill |
