Features

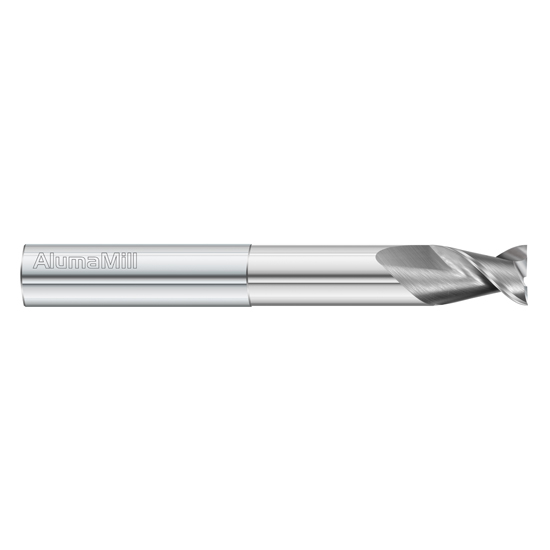

- The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
- Its high polish and unique cylindrical margin design produces superior wall finishes
- The 3825 AlumaMill is stocked uncoated and with FC-19 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1250" |
| Cutting Diameter (mm) | 3.18mm |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Flute Length (Decimal Inch) | 0.2500" |
| Cutting Flute Length (mm) | 6.35mm |
| Cutting Flute Length (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Overall Length (Inch) | 3" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 45 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Neck Diameter (mm) | 3.05mm |
| Reach (Decimal Inch) | 0.7500" |
| Reach (mm) | 19.05mm |
| Reach (Inch) | 3/4" |
| Point End Type | Square |
| End Type Character Designation | S |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Long Reach |
| Length Designator | LR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/8"
Number of Flutes:
2
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Shank Diameter (inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3825 AlumaMill
Ships:
From Partner Facility
