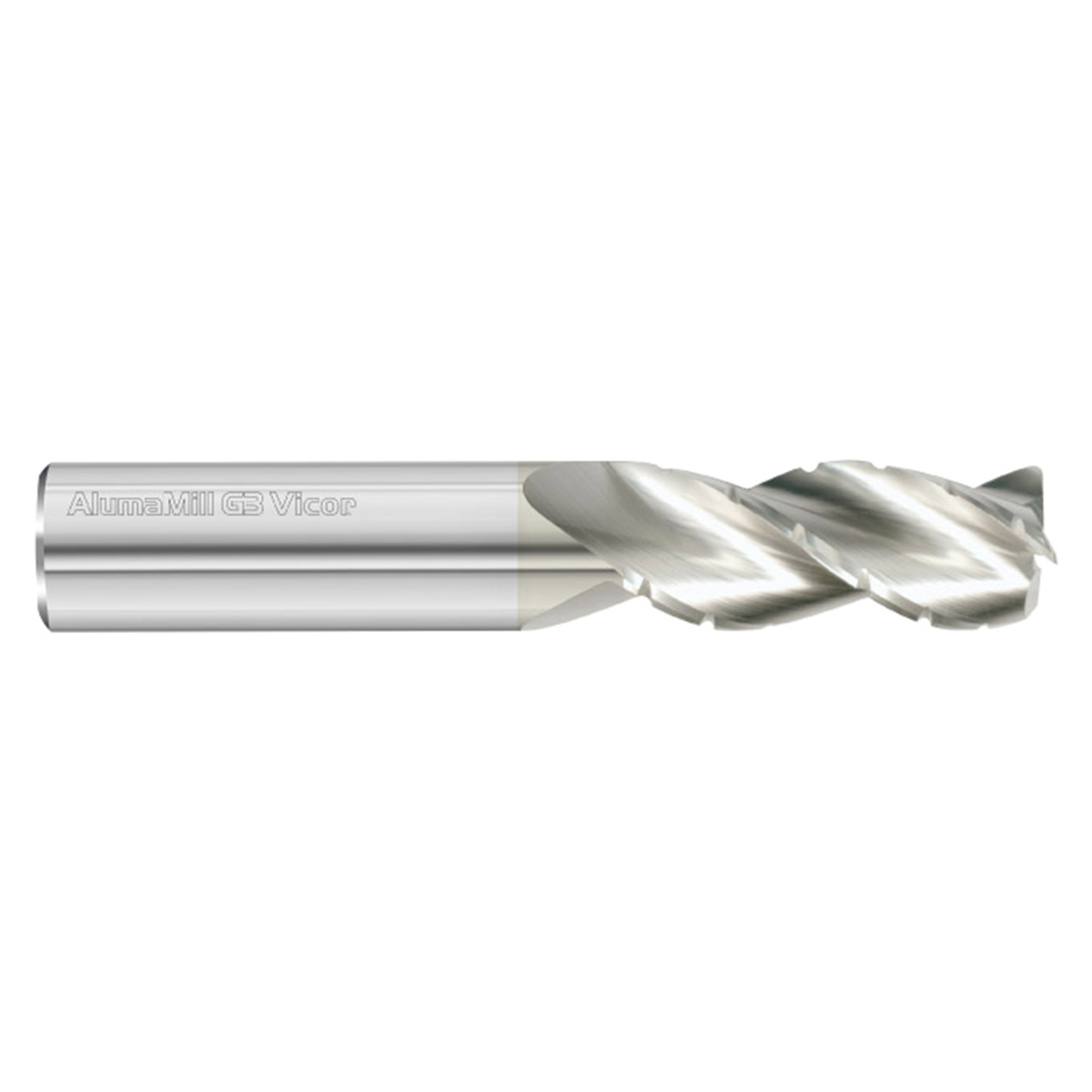

Fullerton Tool 38701 | 1" Diameter x 1" Shank x 4" OAL x 0.030" Radius 3 Flute FC5 Coated Corner Radius End Mill

$371.82 $364.38
(You save $7.44)
Brand:
Fullerton Tool
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (Inch):
1"
Mill Diameter (mm):
25.40mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Number of Flutes:
3
Cutting Direction:
Right Hand
Finish/Coating:
FC5
interval quantity:
1
SKU:
25407807
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Fullerton Tool 38701 | 1" Diameter x 1" Shank x 4" OAL x 0.030" Radius 3 Flute FC5 Coated Corner Radius End Mill

The 3805 AlumaMill G3 Vicor end mill was specially designed to crush it in aggressive roughing, finishing, plunging, and ramping in aluminum and brass & copper. It was designed for fast material removal and multi-purpose machining, while the chip breakers provide chip control. Its flute shape and relief form generate superior wall finishes, while its unique wiper geometry produces excellent floor finishes. The 3805 AlumaMill G3 Vicor is a high-performance end mill with 3-flutes and stocked with FC-5 coating, which helps reduce edge build-up. Check out The AlumaMill G3 Vicor today!


Product Specifications
Manufacturer Part Number38701
Cutting Diameter (Inch)1"
Cutting Diameter (Decimal Inch)1.000"
Cutting Diameter (mm)25.40mm
Shank Diameter (Inch)1"
Shank Diameter (Decimal Inch)1.000"
Shank Diameter (mm)25.40mm
Cutting Flute Length (Inch)1-3/4"
Cutting Flute Length (Decimal Inch)1.750"
Cutting Flute Length (mm)44.45mm
Radius (Decimal Inch)0.030"
Overall Length (Inch)4"
Overall Length (Decimal Inch)4.000"
Overall Length (mm)101.60mm
Number of Flutes3
Helix Angle (Degree)37.50 Degree
LengthStandard
Flute SpiralRight Hand
Cutting DirectionRight Hand
End TypeCorner Radius
CoatingFC5
Series3805
Product TypeCorner Radius End Mill
