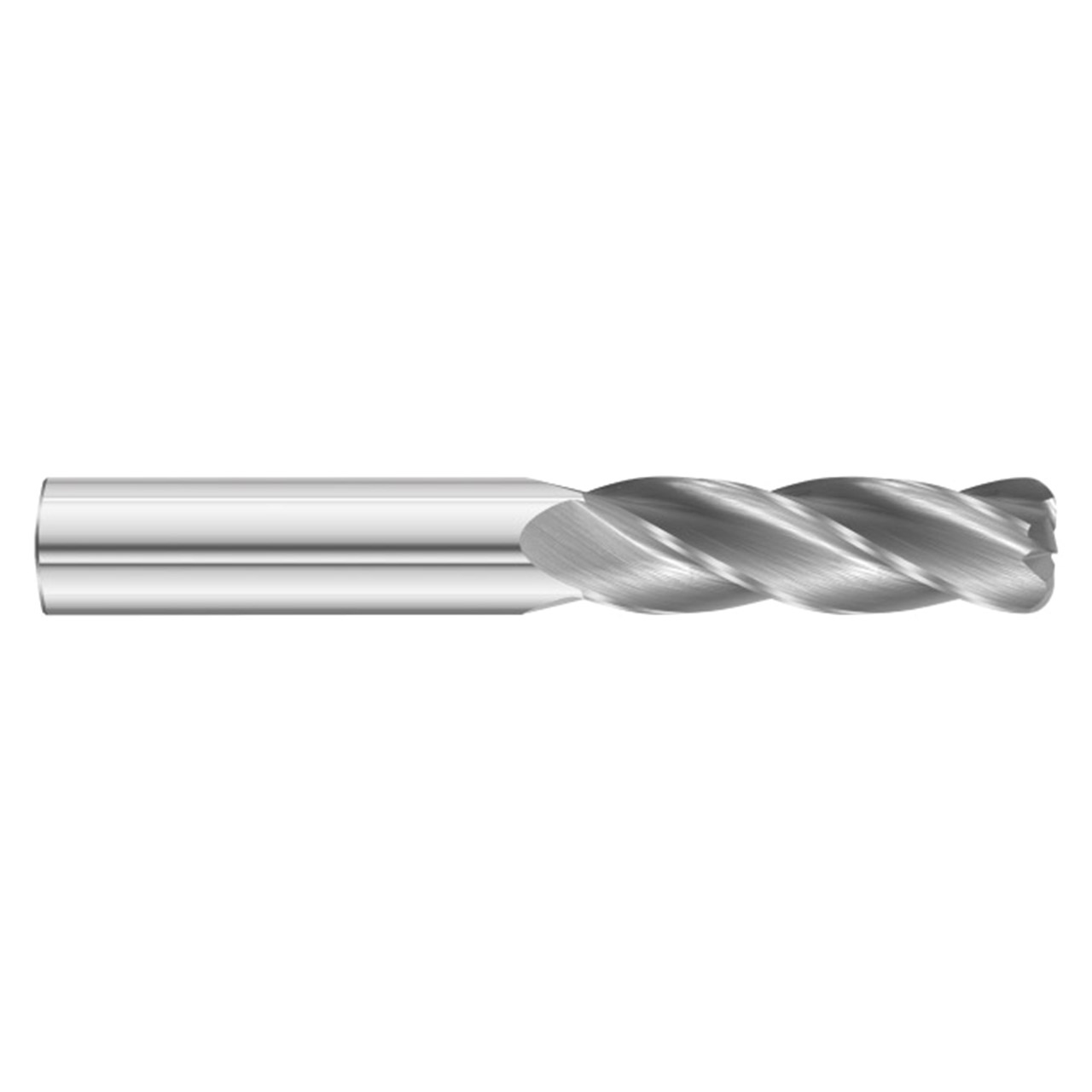

It's designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum, it offers a variety of configurations, and is available with single-end and double-end designs. The 3200 4-Flute General Purpose end mill has 4-flutes and is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings.
| Manufacturer Part Number | 91255 |
| Cutting Diameter (Decimal Inch) | 0.118" |
| Cutting Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.118" |
| Shank Diameter (mm) | 3.00mm |
| Cutting Flute Length (Decimal Inch) | 0.984" |
| Cutting Flute Length (mm) | 25.00mm |
| Radius (Decimal Inch) | 0.039" |
| Overall Length (Decimal Inch) | 2.992" |
| Overall Length (mm) | 76.00mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30.00 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Series | 3200 |
| Product Type | Corner Radius End Mill |
