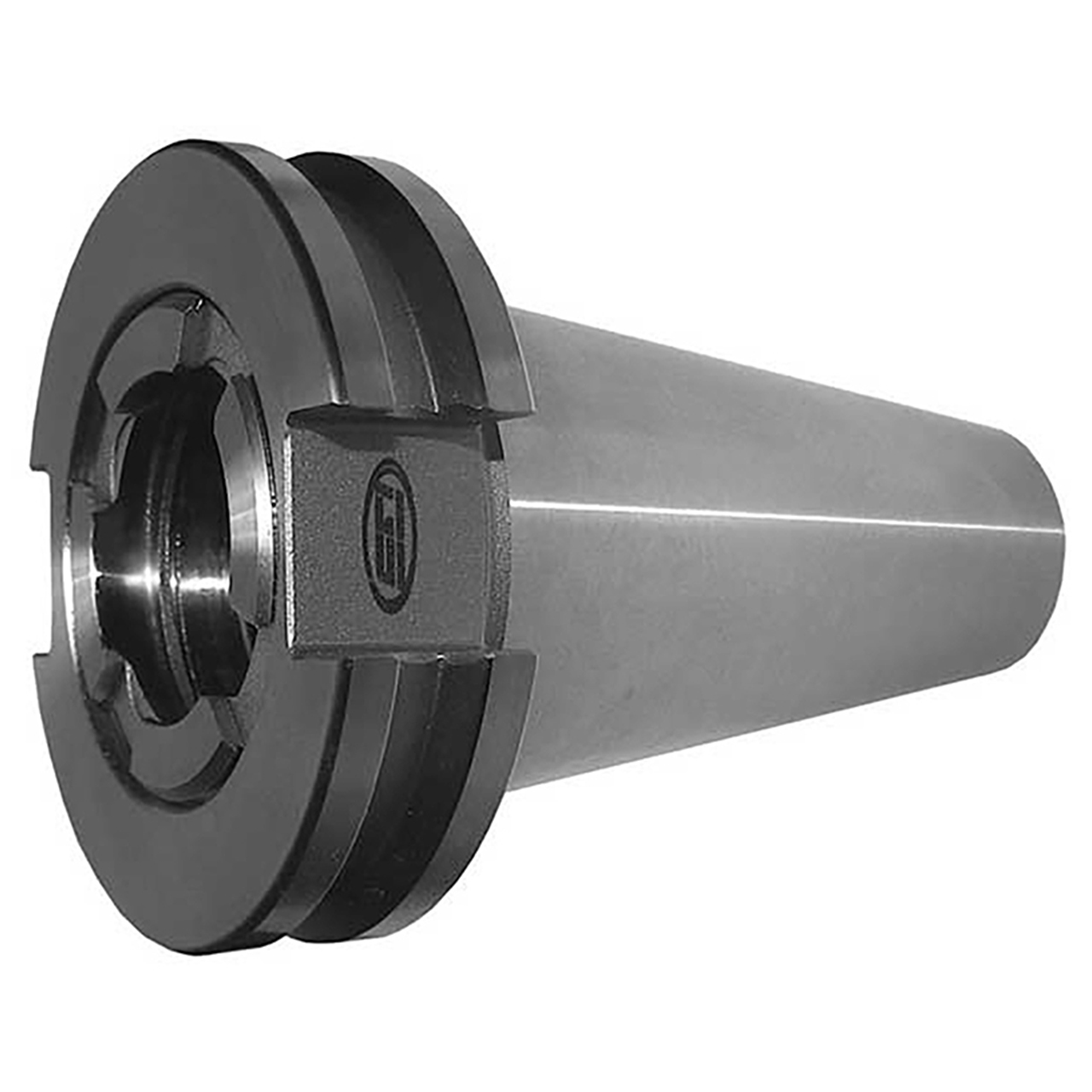

GS Tooling 531403 | CAT50 Size ER32 Collet Chuck

Name: GS Tooling 531403 | CAT50 Size ER32 Collet Chuck
Brand: GS Tooling
SKU: 55021541
Price: 164.21 USD
Availability: InStock

SKU: 55021541 Weight: 5.60 LBS Minimum Purchase: 1 unit

UPC:

$241.48 $164.21

(You save $77.27)

Total Price: $164.21

Quantity:

Shipping: Calculated at Checkout

About This Item

Features

DIN Coolant option-standard
All ground body
Factory balanced to save spindle life, tool life and increased productivity
Premium balanced to G2.5 @ 30,000 RPM
Threaded through holes for a back-up screw (tool stop) or coolant through when removed

Product Specifications

Manufacturer Part Number	531403
Collet System	ER
Collet Series	ER32
Shank Type	Taper Shank
Taper Size	CAT50
Projection (Decimal Inch)	0.75"
Minimum Collet Capacity (Decimal Inch)	0.078"
Maximum Collet Capacity (Decimal Inch)	0.787"
Balanced to (RPM)	25000 RPM
Product Type	Collet Chuck
