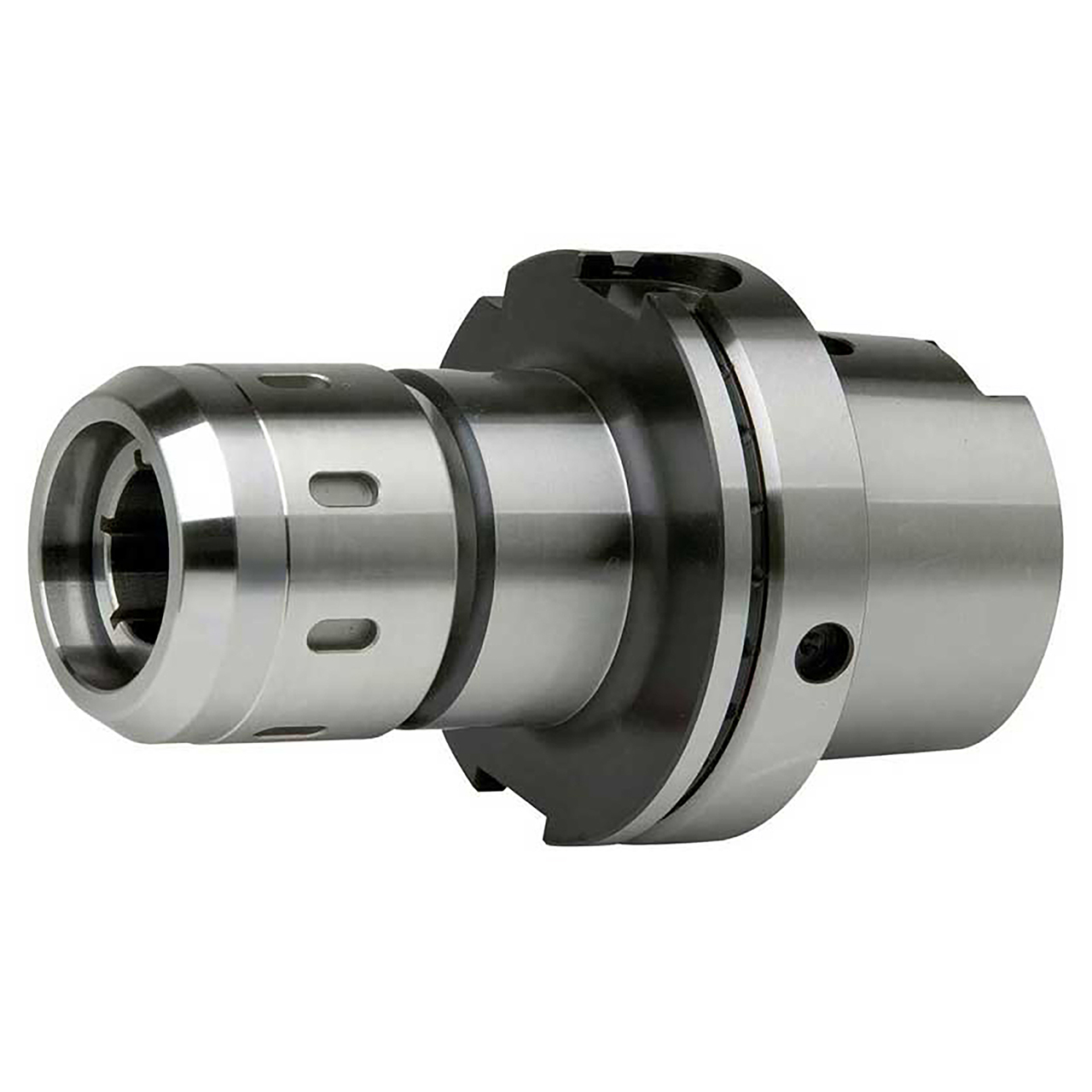

GS Tooling 536154 | HSK63A Size x 0.750" Diameter x 3.740" Projection Milling Chuck

$520.18 $353.72
(You save $166.46)
interval quantity:
1
SKU:
55022294
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Features
  • High rigidity and torque transmission (almost double the rigidity of V-flange holders)
  • Extreme concentricity enhance tool life performance
  • Coolant through capabilities

Product Specifications
Manufacturer Part Number536154
Taper SizeHSK63A
Shank TypeTaper Shank
Hole Diameter (Decimal Inch)0.75"
Nose Diameter (Decimal Inch)2.047"
Projection (Decimal Inch)3.74"
Collet Range (Inch)0.125-0.750"
Collet Series (Inch)GS 3/4"
Seat Depth (Decimal Inch)2.48"
Tightening Torque (Nm)50-70
Product TypeMilling Chuck
