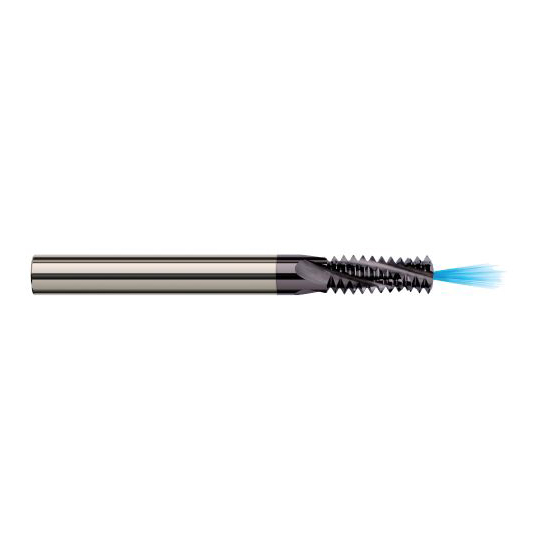

Harvey Tool 17334-C3 | 10-24 Thread 0.1450" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill

$142.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
10-24
Cutter Diameter (Decimal Inch):
0.1450"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3120"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
interval quantity:
1
SKU:
25119896
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 17334-C3 | 10-24 Thread 0.1450" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill
Features
  • Designed for maximum chip ejection in blind holes
  • Coolant through
  • Mills right hand and left hand 60 Degree UN threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 10-24
Milling Diameter (Decimal Inch) 0.1450"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.3120"
Length of Cut (Inch) 5/16"
Overall Length (Decimal Inch) 2.3750"
Overall Length (Inch) 2-3/8"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
