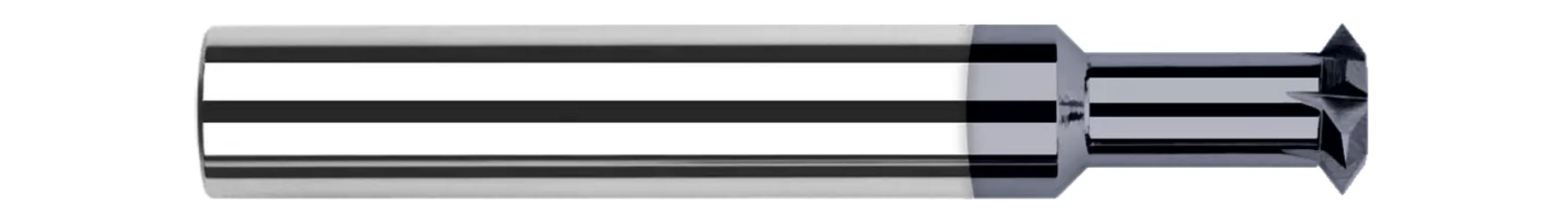

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- 60 Degree angle can also be used for thread milling
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.1250" (1/8) |
| Cutter Width (Inch) | 0.1250" (1/8) |
| Neck Length (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 4 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Type | I |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Inch):
1/8"
Neck Diameter (Decimal Inch):
0.1250"
Included Angle:
90 Degree
Number of Flutes:
4
Cutter Width (Inch):
1/8"
Cutter Width (Decimal Inch):
0.1250"
Neck Length (Inch):
5/16"
Neck Length (Decimal Inch):
0.3120"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C6
