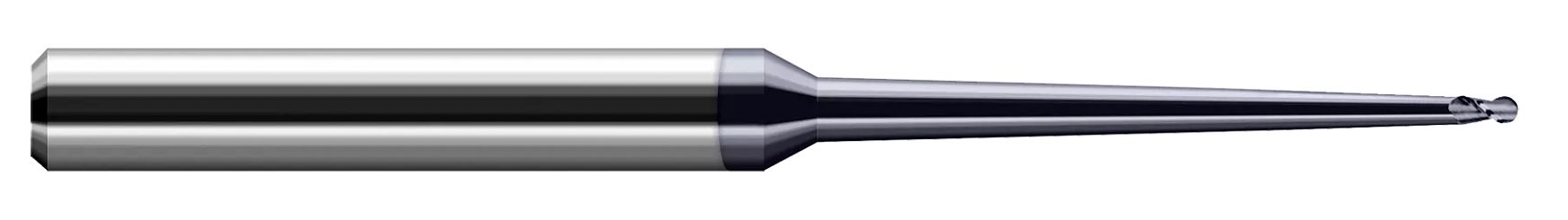

Harvey Tool 29839 | 0.0390" Diameter x 1/8" Shank x 0.0590" LOC x 2-1/2" OAL 2 Flute Uncoated Carbide Ball End Mill

$55.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25185794
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0390" (1 mm)
Neck Diameter (Inch)0.0540"
Minor Diameter (Inch)0.0350" (.9 mm)
Length of Cut (Inch)0.0590"
Neck Length (Inch)0.0390"
Tapered Reach (Inch)0.3750" (3/8)
Overall Reach (Inch)0.5000" (1/2)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes2
Neck Angle2
LOC Multiple1.5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
