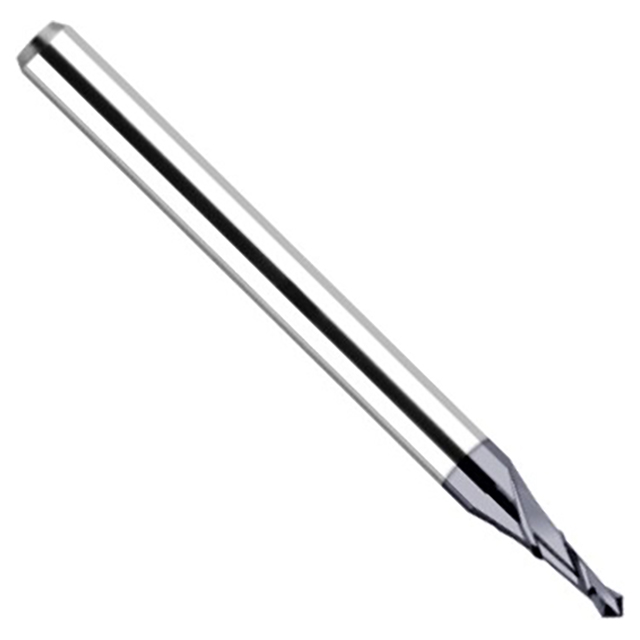

Features
- 90 Degree available in long length!
- Thinned Web to Reduce Walking
- Self-Centering Point Geometry
- 2 Flutes
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (Decimal Inch) | 0.1562" |
| Drill Diameter (Inch) | 5/32" |
| Angle Per Side | 45 Degrees |
| Included Angle | 90 Degree |
| Flute Length (Decimal Inch) | 0.3750" |
| Flute Length (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (2x) |
| Web Thickness (Decimal Inch) | 0.0110" |
| Type | II |
| Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Size (Inch):
5/32"
Size (Decimal Inch):
0.1562"
Drill Point Angle:
90 Degree
Flute Length (Inch):
3/8"
Flute Length (Decimal Inch):
0.3750"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Type:
Straight
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Finish/Coating:
AlTiN
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
