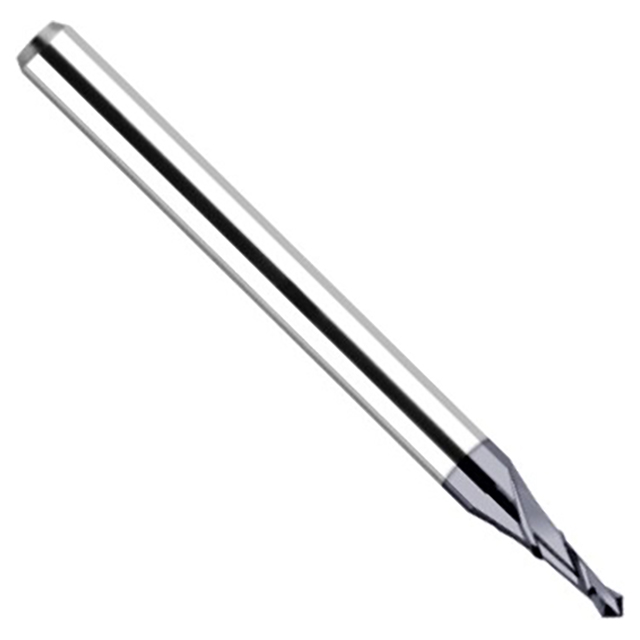

| Drill Diameter (Decimal Inch) | 0.0780" |
| Drill Diameter (Inch) | 5/64" |
| Angle Per Side | 70 Degrees |
| Included Angle | 140 Degree |
| Flute Length (Decimal Inch) | 0.2340" |
| Flute Length (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (3x) |
| Web Thickness (Decimal Inch) | 0.0050" |
| Type | I |
| Single or Double | Single |
