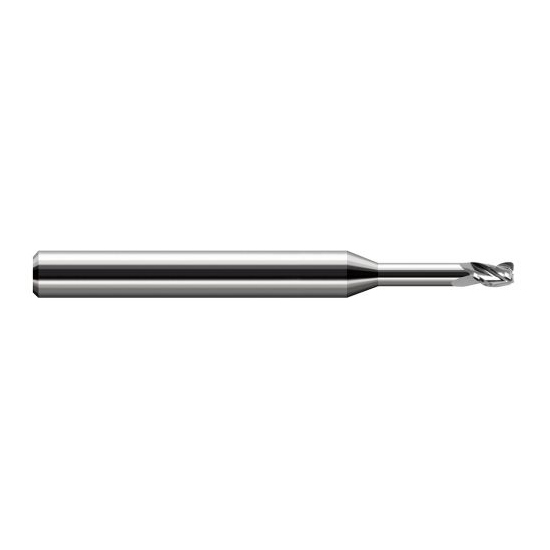

Harvey Tool 42809 | 9/64" Diameter x 3/16" Shank x LOC x 3" OAL 0.0150" Radius Uncoated Carbide Corner Radius End Mill

$44.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1406"
End Type:
Radius
Corner Radius (Decimal Inch):
0.0150"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.2200"
Shank Type:
Reduced
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
SKU:
25115317
UPC:
Weight:
0.04 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Inch) 9/64"
Mill Diameter (Decimal Inch) 0.1406"
Corner Radius (Inch) 1/64"
Corner Radius (Decimal Inch) 0.0150"
Number of Flutes 3
Finish/Coating Uncoated
Length Of Cut (Decimal Inch) 0.2200"
Overall Reach (Inch) 3/4"
Overall Reach (Decimal Inch) 0.7500"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Single or Double End Single
Center Cutting (Yes/No) Yes
Neck Diameter (Decimal Inch) 0.1360"
LOC Multiple 1.5x
Reach Multiple 5x
