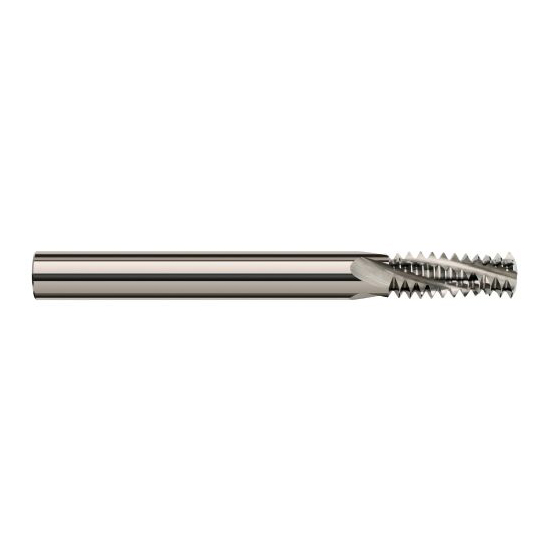

Harvey Tool 70128 | 3/4-16 Thread 0.4900" Cutting Diameter 4FL Uncoated Carbide Helical Flute Thread Mill

$305.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
3/4-16
Cutter Diameter (Decimal Inch):
0.4900"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Number of Flutes:
4
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
interval quantity:
1
SKU:
25120023
UPC:
Weight:
0.36 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Harvey Tool 70128 | 3/4-16 Thread 0.4900" Cutting Diameter 4FL Uncoated Carbide Helical Flute Thread Mill

Related Products

Features
  • AlTiN coating works great in steels up to 60Rc
  • TiB2 coating is outstanding in aluminum
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 3/4-16
Milling Diameter (Decimal Inch) 0.4900"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (Inch) 1/2"
Number of Flutes 4
Length of Cut (Decimal Inch) 1.2500"
Length of Cut (Inch) 1-1/4"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Finish/Coating Uncoated
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
