Product Specifications
| Manufacturer Part Number | 710412-C10 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Length of Cut (Decimal Inch) | 1.000" |
| Length of Cut (Inch) | 1" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Number of Flute | 6 |
| LOC Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C10 |

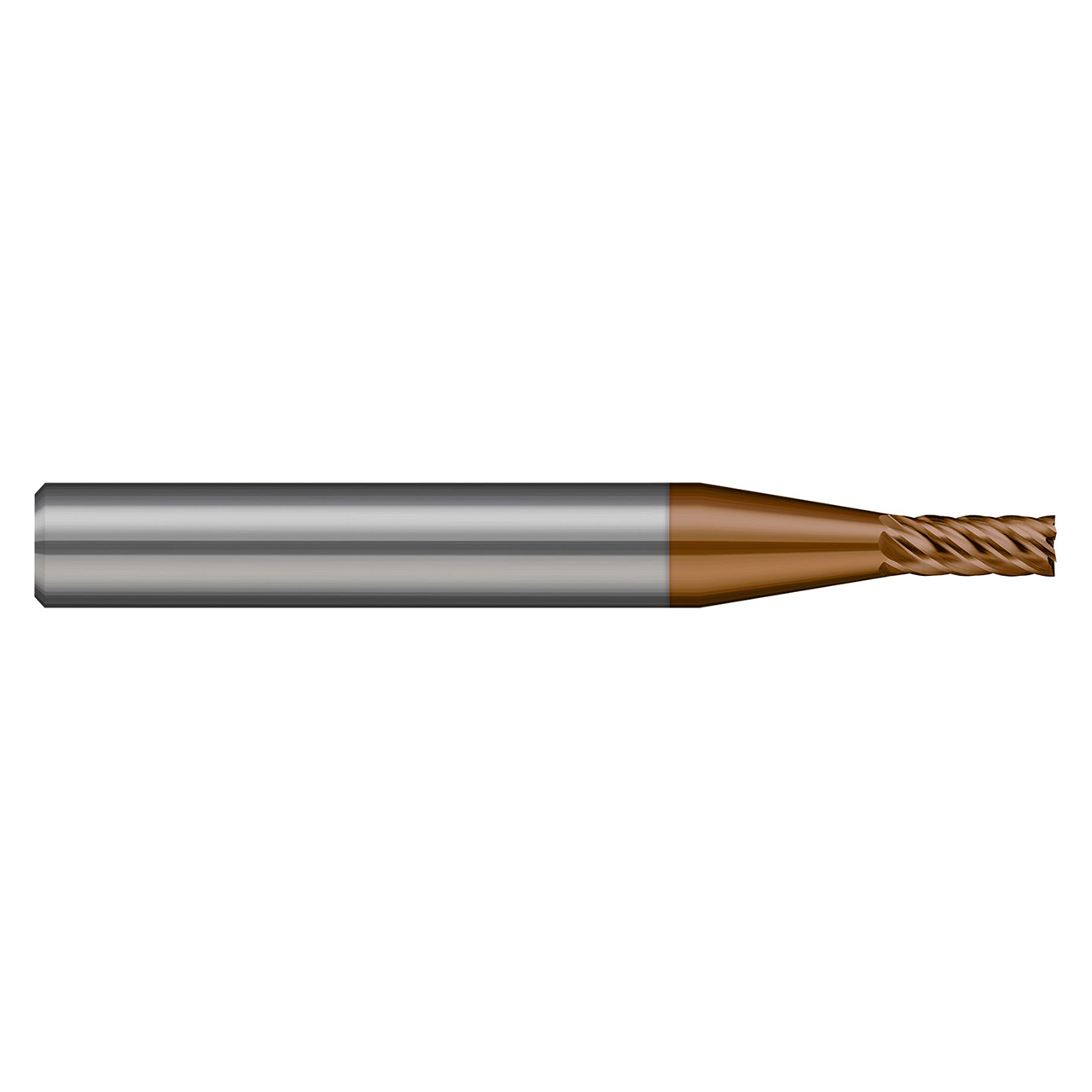

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1870"
Mill Diameter (mm):
4.75mm
Number of Flutes:
6
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Finish/Coating:
C10
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
63.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Interval quantity:
1
