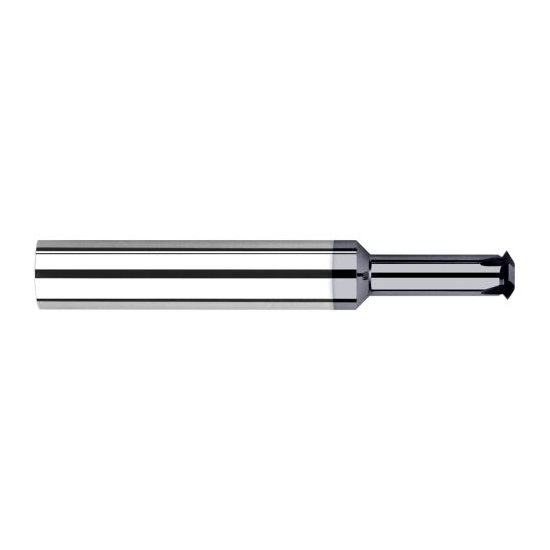

Harvey Tool 71090-C3 | Thread 0.6200" Diameter 6FL 60 Degree Included Angle AlTiN Coated Carbide Single Profile Thread Mill

$227.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutting Diameter (Decimal Inch):
0.6200"
Number of Flutes:
6
Material:
Carbide
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Ships:
From Partner Facility
interval quantity:
1
SKU:
25120338
UPC:
Weight:
0.43 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 71090-C3 | Thread 0.6200" Diameter 6FL 60 Degree Included Angle AlTiN Coated Carbide Single Profile Thread Mill
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Milling Diameter (Decimal Inch) 0.6200"
Max Depth of Thread (Inch) 1-5/16"
Max Depth of Thread (Decimal Inch) 1.3120"
Number of Flutes 6
Finish/Coating AlTiN
Included Angle 60 Degree
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Overall Length (Inch) 3-1/2"
Overall Length (Decimal Inch) 3.5000"
Neck Diameter (Decimal Inch) 0.4200"
Length of Cut (Decimal Inch) 0.1150"
Angle Per Side 30 Degrees
