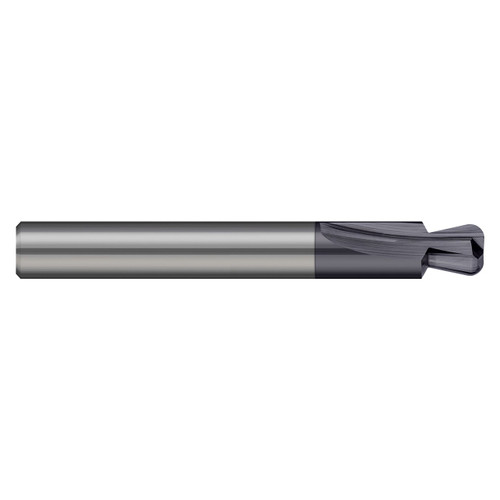

Harvey Tool 715235-C8 | 0.231" Diameter x 1/4" Shank x 1/16" Corner Radius x 2" OAL 2 Degree Included Angle 2 Flute C8 Coated Dovetail Cutter

$118.80
Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
15/64"
Cutting Diameter (Decimal Inch):
0.2310"
Cutting Diameter (mm):
5.87mm
Finish/Coating:
C8
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Interval quantity:
1
SKU:
25352272
Weight:
0.04 LBS
Shipping:
Free Shipping
Harvey Tool 715235-C8 | 0.231" Diameter x 1/4" Shank x 1/16" Corner Radius x 2" OAL 2 Degree Included Angle 2 Flute C8 Coated Dovetail Cutter

Product Specifications
Manufacturer Part Number715235-C8
Cutter Diameter (Decimal Inch)0.231"
Neck Diameter (Decimal Inch)0.159"
Length of Cut (Decimal Inch)0.238"
Overall Length (Decimal Inch)2.000"
Overall Length (Inch)2"
Corner Radius (Decimal Inch)0.062"
Corner Radius (Inch)1/16"
Angle per Side (Degree)12 Degree
Included Angle (Degree)2 Degree
Number of Flute2
O Ring X Section (Decimal Inch)0.275"
Shank Diameter (Decimal Inch)0.250"
Shank Diameter (Inch)1/4"
MetricNo
CoatingC8
Product TypeSpecialty Dovetail Cutter

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
15/64"
Cutting Diameter (Decimal Inch):
0.2310"
Cutting Diameter (mm):
5.87mm
Finish/Coating:
C8
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Interval quantity:
1
