Product Specifications
| Manufacturer Part Number | 722304 |
| Cutting Diameter (Decimal Inch) | 0.062" |
| Shank Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.0370" |
| Length of Cut (Decimal Inch) | 0.053" |
| Neck Length (Inch) | 3/8" |
| Overall Length (Inch) | 1-1/2" |
| Overall Reach (Decimal Inch) | 0.4280" |
| Radius (Inch) | 1/32" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 2 |
| Coating | Uncoated |

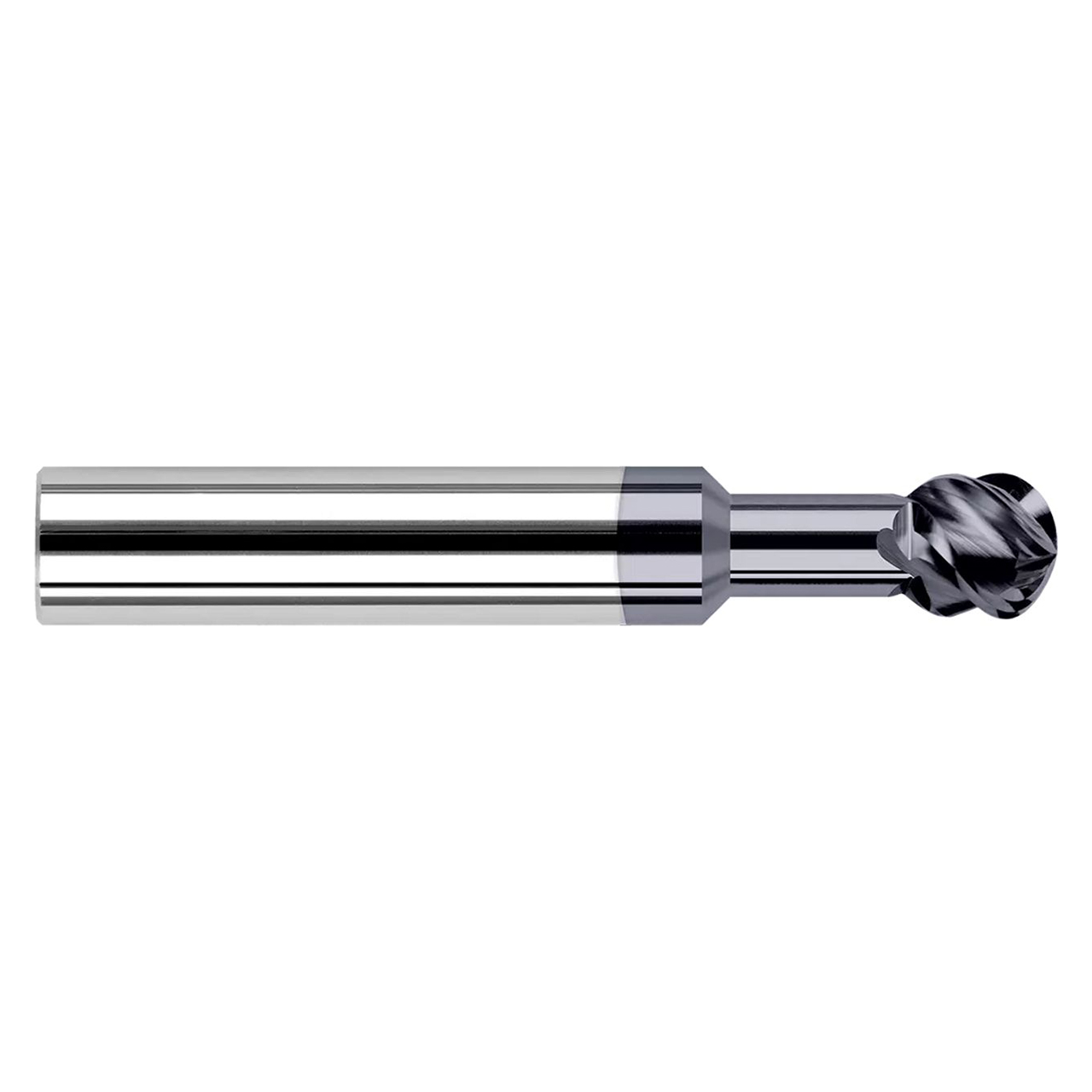

| Product Type | Undercutting End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0620"
Cutter Diameter (mm):
1.57mm
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0530"
Length of Cut (mm):
1.35mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Neck Diameter (Inch):
1/27"
Neck Diameter (Decimal Inch):
0.0370"
Neck Diameter (mm):
0.94mm
Neck Length (Inch):
3/8"
Neck Length (Decimal Inch):
0.3750"
Neck Length (mm):
9.53mm
Number of Flutes:
2
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
