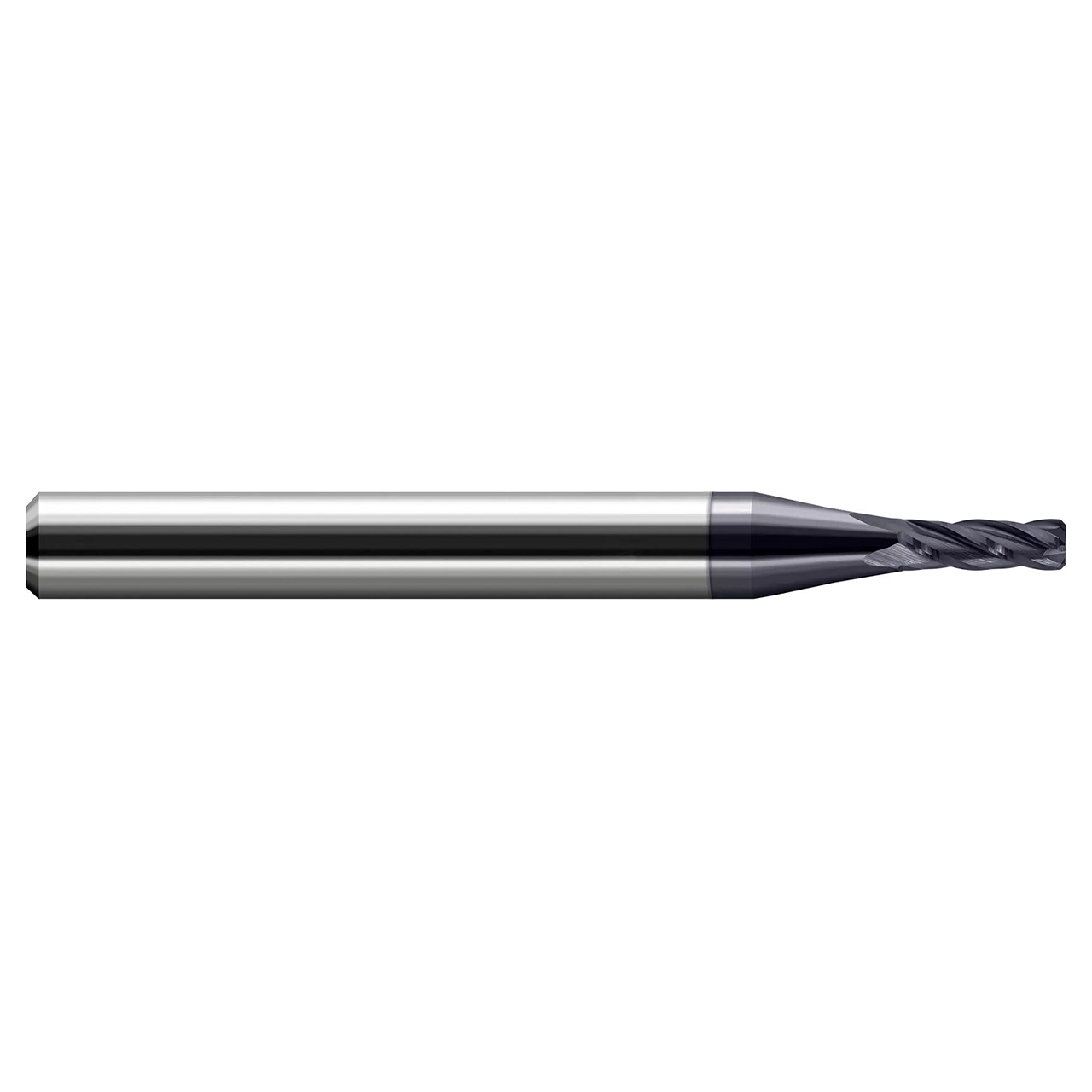

Harvey Tool corner chamfer end mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.
Features- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 727116-C3 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Chamfer Length (Inch) | 0.0200" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Angle per Side | 45 Degree |
| Number of Flutes | 4 |
| LOC Multiple | (1.5x) |
| Coating | C3 |
| Center Cutting | No |
| Profile | Corner Chamfer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Number of Flutes:
4
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
