Features
- Designed to be used before a hexalobe cutter
- 140 Degree included tip angle
- 120 Degree included chamfer angle
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA

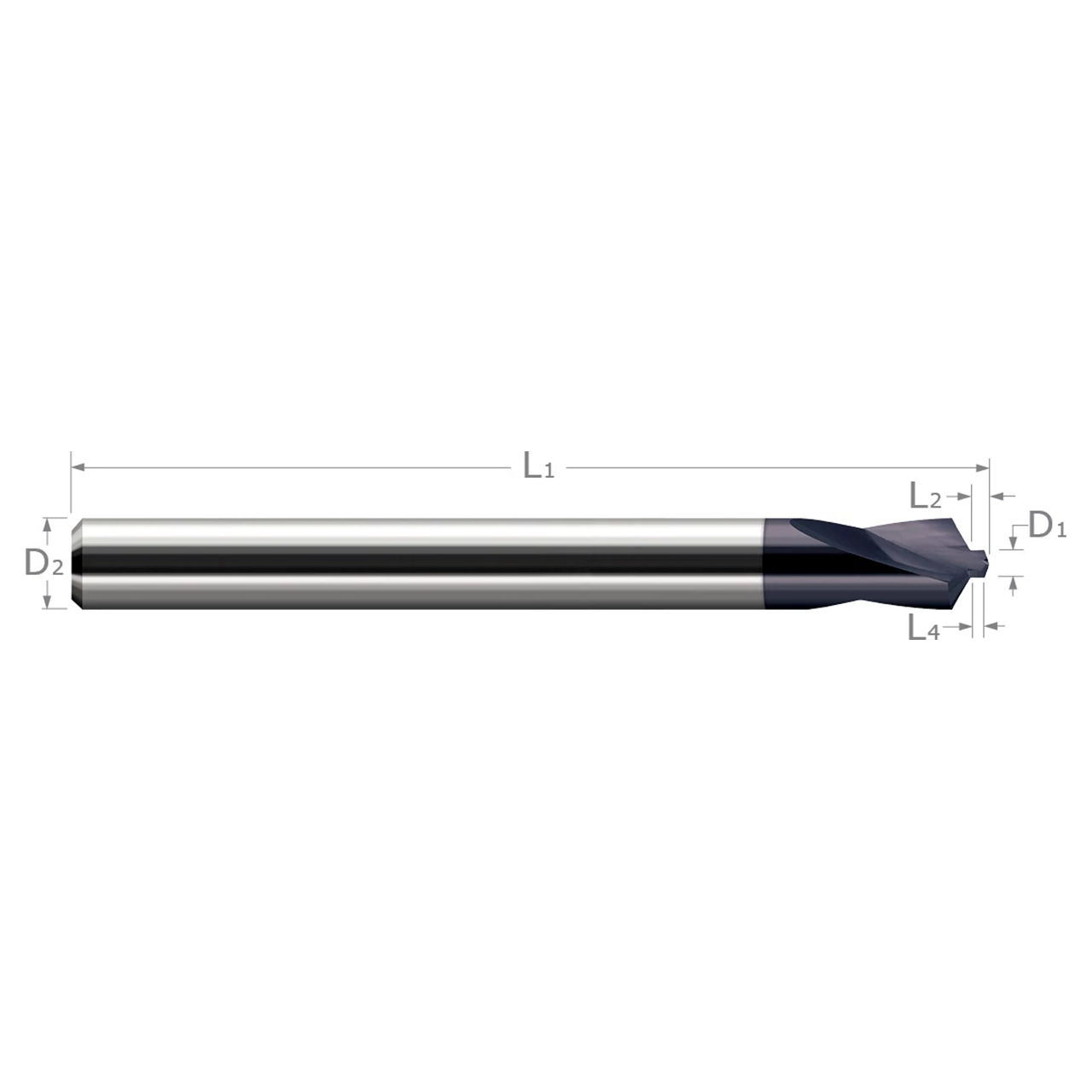

Product Specifications
| Manufacturer Part Number | 741108-C6 |
| Drill Diameter (Inch) | 0.0630" |
| Drill Diameter (mm) | 1.6mm |
| Shank Diameter (mm) | 4mm |
| Length of Cut (Inch) | 0.0565" |
| Drill Length (Inch) | 0.0450" |
| Overall Length (Inch) | 1.5750" |
| Size | T8 |
| Shank Diameter (Inch) | 0.1575" |
| Angle per Side | 60 Degree |
| Included Angle | 120 Degree |
| Point Angle | 140 Degree |
| Number of Flutes | 2 |
| LOC Multiple | (3x) |
| Coating | C6 |
| Profile | Drill |
