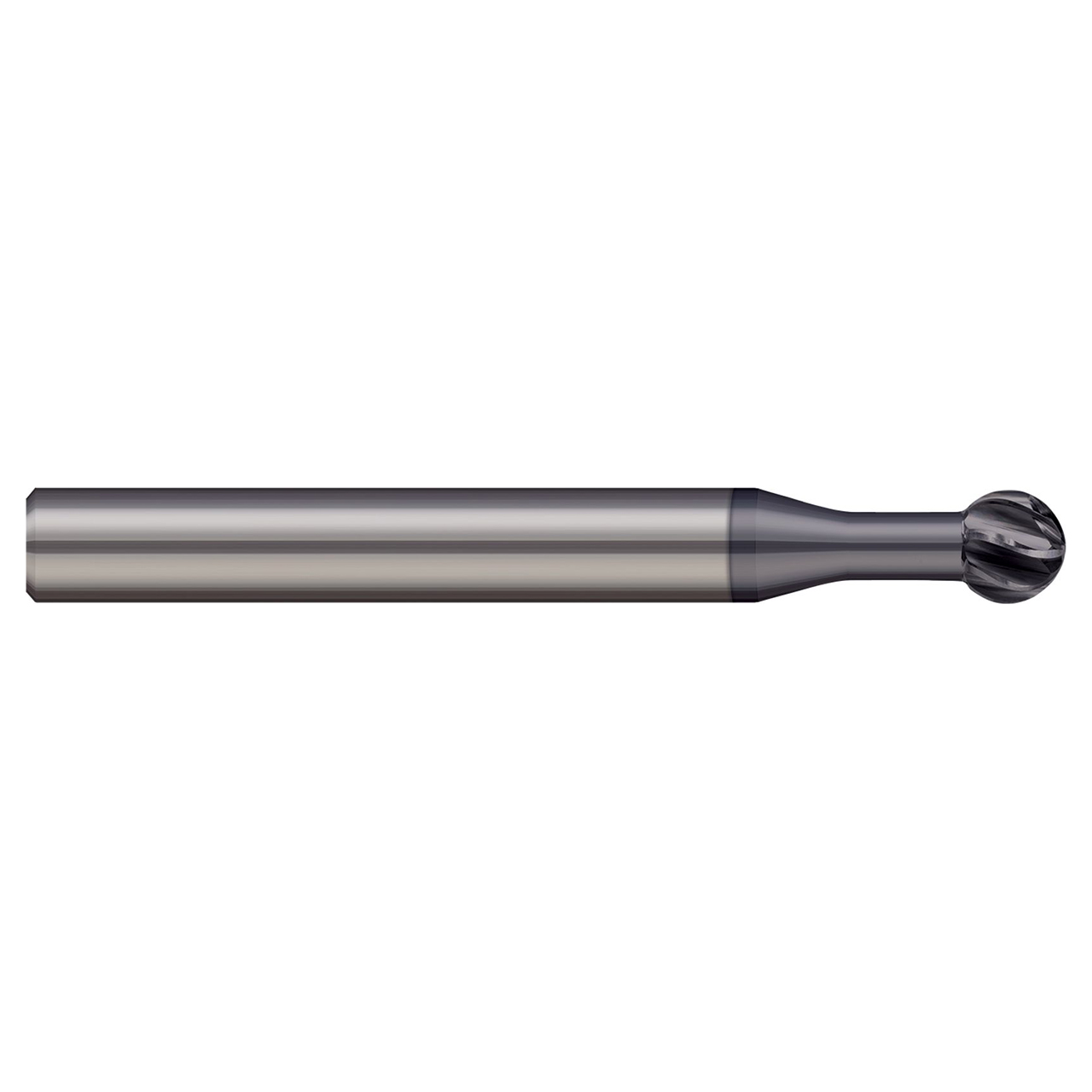

Harvey Tool 745462-C6 | 0.0625" (1/16) Diameter x 0.1250" (1/8) Shank x 0.0530" LOC x 1.5000" (1-1/2) OAL 4 Flutes AlTiN Nano Coated Carbide Undercutting End Mill

$57.80
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0625"
Neck Diameter (Decimal Inch):
0.0370"
Radius (Decimal Inch):
0.0313"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.0530"
Neck Length (Inch):
1/4"
Neck Length (Decimal Inch):
0.2500"
Overall Reach (Decimal Inch):
0.3030"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C6
SKU:
25211228
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Undercutting End Mills - 270° - For Hardened Steels are optimized for hardened steels.

  • Designed for undercutting, deburring, and multi-axis machining
  • Increased flute count for added strength and tool life
  • CNC ground in the USA
  • 270° spherical ball
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number745462-C6
Cutter Diameter (Inch)0.0625" (1/16)
Neck Diameter (Inch)0.0370"
Length of Cut (Inch)0.0530"
Neck Length (Inch)0.2500" (1/4)
Overall Reach (Inch)0.3030"
Overall Length (Inch)1.5000" (1-1/2)
Radius (Inch)0.0313"
Wrap Angle270
Flutes4
Shank Diameter (Inch)0.1250" (1/8)
CoatingC6
