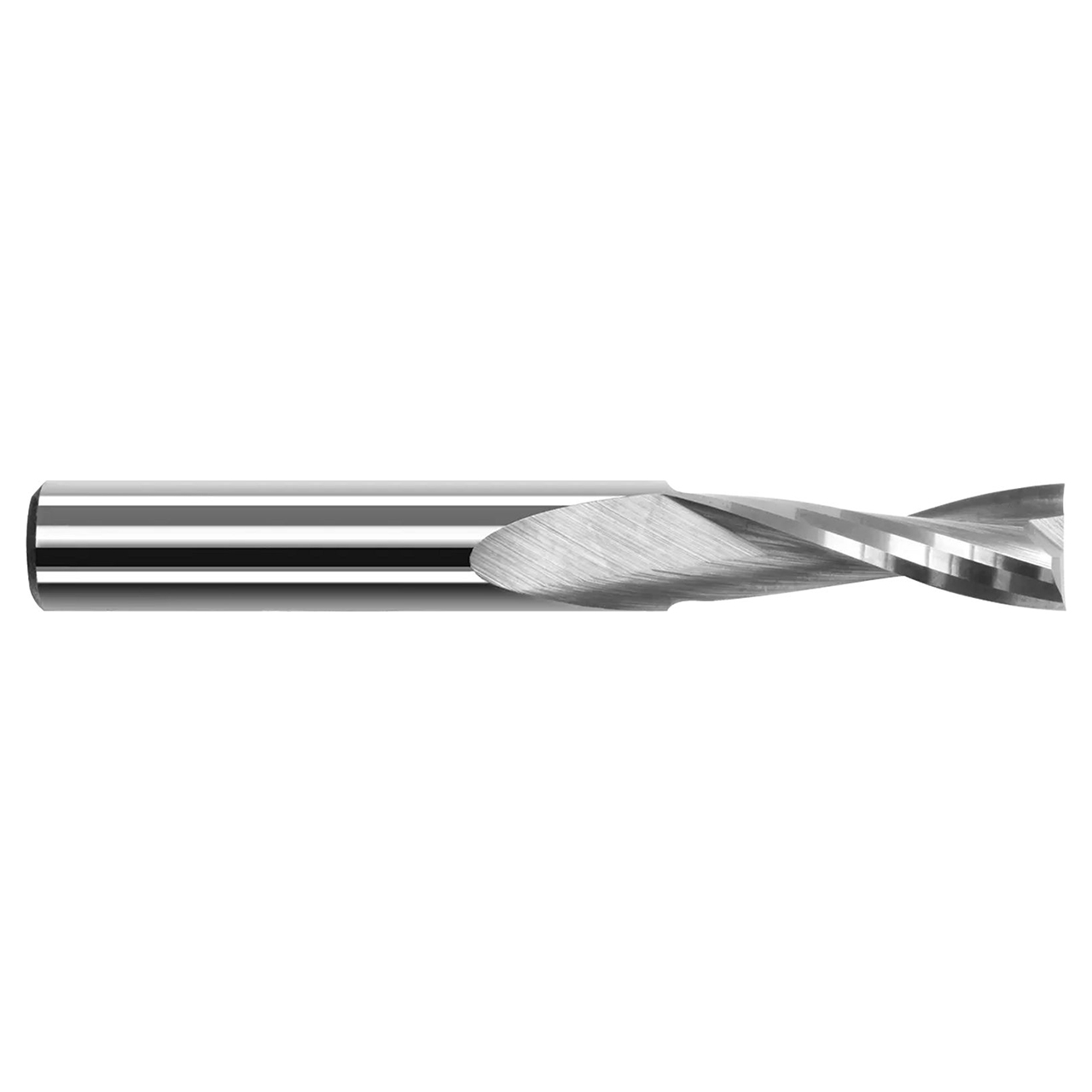

Harvey Tool 745693 | 0.0937" (3/32) Diameter x 0.1250" (1/8) Shank x 0.5620" (9/16) LOC x 2.0000" (2) OAL 2 Flute Uncoated Carbide Plastics 2 Flute Square End Mill

$43.70
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Number of Flutes:
2
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
SKU:
25211231
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

CNC ground in the USA from solid carbide, this fully stocked Harvey Tool offering of End Mills for Plastics - Square Upcut - 2 Flute features a slower helix (of approximately 20°) for minimized lifting forces, preferable for vacuum table setups.

  • Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number745693
Cutter Diameter (Inch)0.0937" (3/32)
Length of Cut (Inch)0.5620" (9/16)
Overall Length (Inch)2.0000" (2)
Flutes2
LOC Multiple6x
Shank Diameter (Inch)0.1250" (1/8)
CoatingUncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
