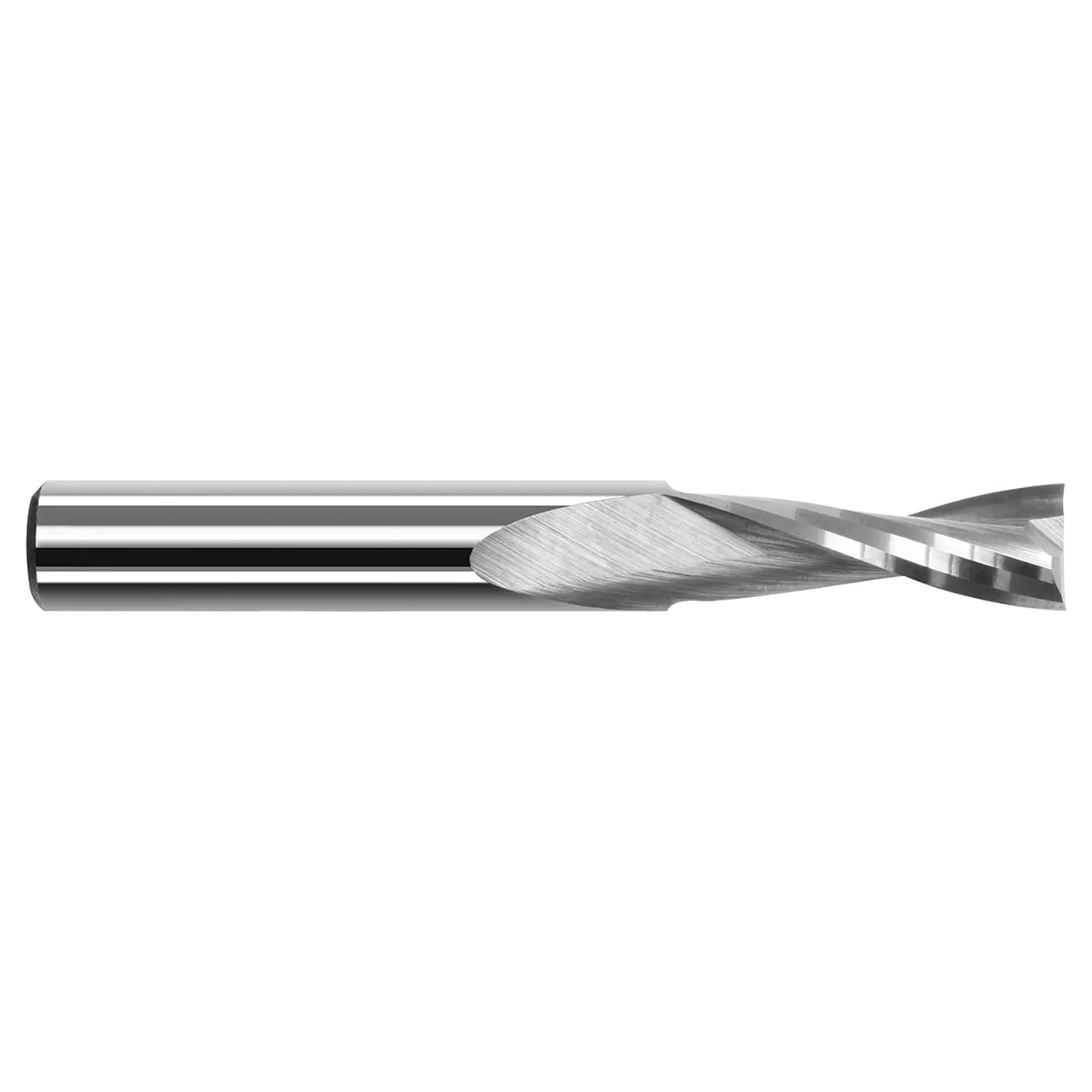

Harvey Tool 745708 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.7500" (3/4) LOC x 2.5000" (2-1/2) OAL 2 Flute Uncoated Carbide Plastics 2 Flute Square End Mill

$43.70
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Number of Flutes:
2
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
SKU:
25211232
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

CNC ground in the USA from solid carbide, this fully stocked Harvey Tool offering of End Mills for Plastics - Square Upcut - 2 Flute features a slower helix (of approximately 20°) for minimized lifting forces, preferable for vacuum table setups.

  • Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number745708
Cutter Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.7500" (3/4)
Overall Length (Inch)2.5000" (2-1/2)
Flutes2
LOC Multiple6x
Shank Diameter (Inch)0.1250" (1/8)
CoatingUncoated
