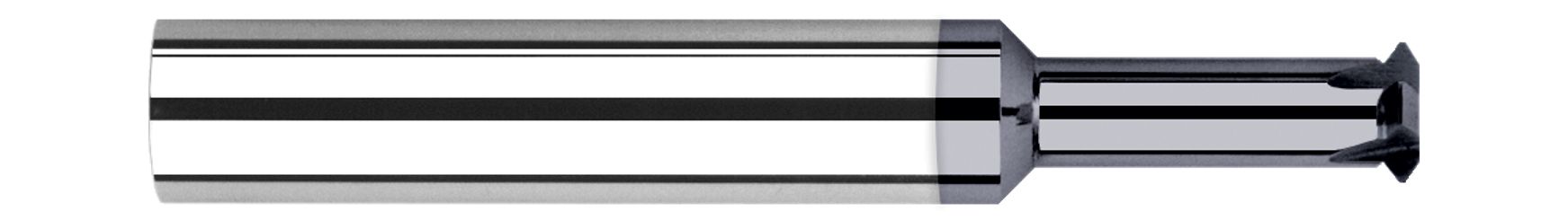

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.
- Single thread form – can mill multiple pitches
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (mm) | 1.500 mm |
| Neck Diameter (mm) | 0.960 mm |
| Length of Cut (mm) | 0.346 mm |
| Overall Length (mm) | 38.000 mm |
| Max Depth of Thread (mm) | 2.700 mm |
| Tip Flat | 0.040 mm |
| Number of Flutes | 3 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Reach Multiple | 3x |
| Size | M2 |
| Shank Diameter (mm) | 3.000 mm |
| Metric | Yes |
| Coating/Finish | C6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (mm):
1.50mm
Neck Diameter (mm):
0.96mm
Length of Cut (mm):
0.35mm
Overall Length (mm):
38.00mm
Included Angle:
60 Degree
Number of Flutes:
3
Shank Diameter (mm):
3.00mm
Finish/Coating:
C6
