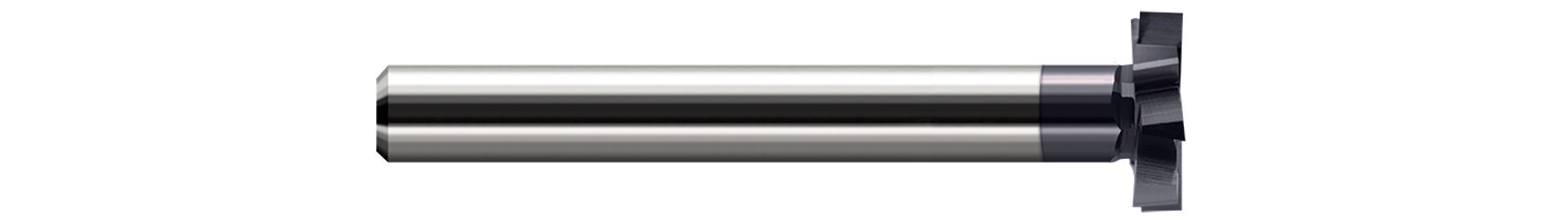

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Keyseat Cutters Down to 1/16" Diameter
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Cutter Width (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 3.0000" (3) |
| Radial Depth of Cut (Inch) | 0.1775" |
| Number of Flutes | 10 |
| Type | II |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Number of Flutes:
10
Cutter Width (Inch):
1/8"
Cutter Width (Decimal Inch):
0.1250"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
C3
