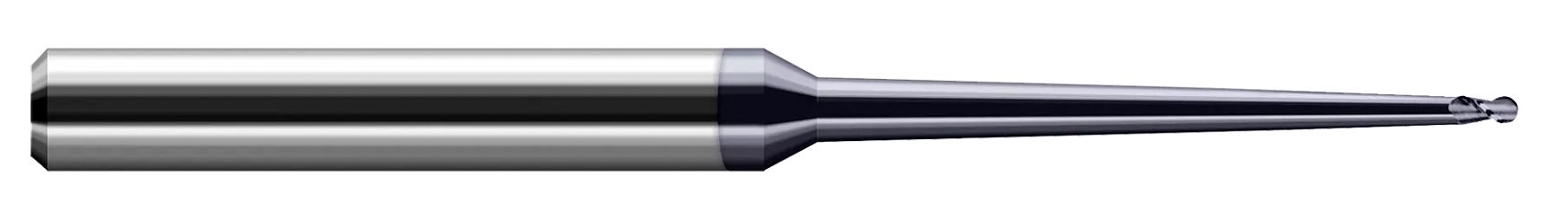

Harvey Tool 776231 | 1/32" Diameter x 1/4" Shank x 3/64" LOC x 4" OAL 4 Flute Uncoated Carbide Ball End Mill

$87.70
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1100"
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Overall Reach (Inch):
1-1/2"
Overall Reach (Decimal Inch):
1.5000"
Number of Flutes:
4
Finish/Coating:
Uncoated
Neck Length (Inch):
1/32"
Neck Length (Decimal Inch):
0.0310"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
SKU:
25186844
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.

  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1-½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0310" (1/32)
Neck Diameter (Inch)0.1100" (2.8 mm)
Minor Diameter (Inch)0.0280" (.7 mm)
Length of Cut (Inch)0.0470" (3/64)
Neck Length (Inch)0.0310" (1/32)
Tapered Reach (Inch)1.2500" (1-1/4)
Overall Reach (Inch)1.5000" (1-1/2)
Overall Length (Inch)4.0000" (4)
Number of Flutes4
Neck Angle2
LOC Multiple1.5x
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishUncoated
